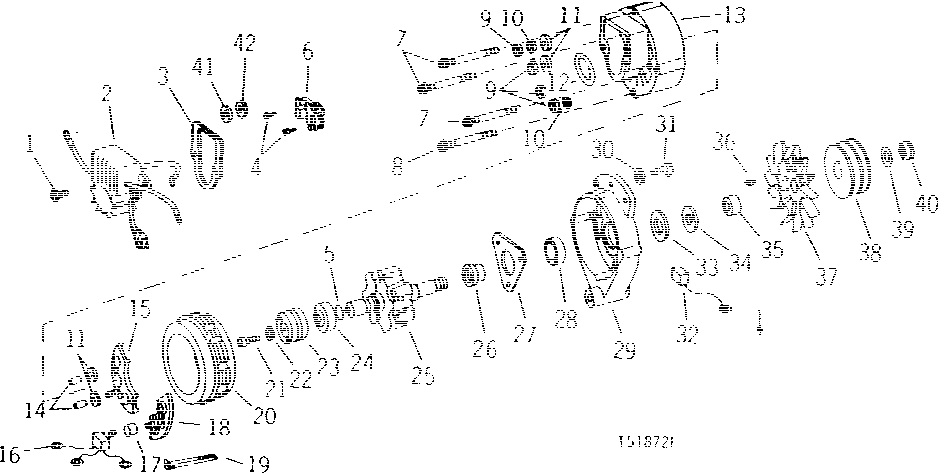

Запчасти John Deere 90B 8 - ALTERNATOR (62 AMPERE) 85 - ALTERNATOR, STARTING MOTOR, REGULATOR AND BATTERIES

1

SCREW

( T31308 USE IF AVAILABLE)

2шт.

2

AT55163

VOLTAGE REGULATOR

(MOTOROLA NO. 8RG2011 OR 8RG2012) (SUB FOR AT56891)

1шт.

3

GASKET

( T29100 USE IF AVAILABLE)

1шт.

4

SCREW

( T59224 USE IF AVAILABLE)

2шт.

5

24H1283

WASHER

7/32" X 1/2" X 0.049"

1шт.

6

AT27128

HOLDER

1шт.

7

37H95

SCREW

SELF-TAPPING, (SUB FOR 37H47) (SUB FOR T59225)

4шт.

8

R47460

BOLT

1шт.

9

14H778

NUT

0.190"

5шт.

10

12H295

LOCK WASHER

0.190"

5шт.

11

R15036

WASHER

2шт.

12

RING

REAR BEARING ( T50860 USE IF AVAILABLE)

1шт.

13

HOUSING

REAR ( T50859 USE IF AVAILABLE)

1шт.

14

SLEEVE

( T59223 USE IF AVAILABLE)

2шт.

15

DIODE

RECTIFYING NEGATIVE AT49450 USE IF AVAILABLE

1шт.

16

AT49449

DIODE

TRIO

1шт.

17

T59226

WASHER

1шт.

18

DIODE

RECTIFYING POSITIVE AT49451 USE IF AVAILABLE

1шт.

19

M66044

TIE BAND

2шт.

20

AT56890

STATOR

1шт.

21

T17948

SCREW

(SUB FOR T29102)

1шт.

22

12H246

LOCK WASHER

0.190"

4шт.

23

RING

( AT27127 USE IF AVAILABLE)

1шт.

24

JD9449

BALL BEARING

REAR, (SUB FOR AT23188)

1шт.

25

ROTOR

( AT56889 USE IF AVAILABLE)

1шт.

26

R47462

SLEEVE

1шт.

27

RETAINER

( T25346 USE IF AVAILABLE)

1шт.

28

AR50228

BALL BEARING

FRONT

1шт.

29

HOUSING

FRONT ( T59222 USE IF AVAILABLE)

1шт.

30

12H315

LOCK WASHER

0.164"

3шт.

31

21H1299

SCREW

0.164" X 3/8"

3шт.

32

CAPACITOR

( T42349 USE IF AVAILABLE)

1шт.

33

T59227

KIT

1шт.

34

SHIM

( T51143 USE IF AVAILABLE)

1шт.

35

R47463

SPACER

1шт.

36

26H9

SHAFT KEY

1/8" X 5/8"

1шт.

37

AR50231

FAN

1шт.

38

T43032

PULLEY

1шт.

39

12H294

LOCK WASHER

5/8"

1шт.

40

14H866

NUT

5/8"

1шт.

41

12H302

LOCK WASHER

1/4"

2шт.

42

14H786

NUT

1/4"

2шт.

TY6749

ALTERNATOR

LESS PULLEY (62 AMPERE) (INCLUDES REGULATOR) (SUB FOR AT55539)

1шт.

SE501375

ALTERNATOR

(REMANUFACTURED FOR TY6749)

1шт.
