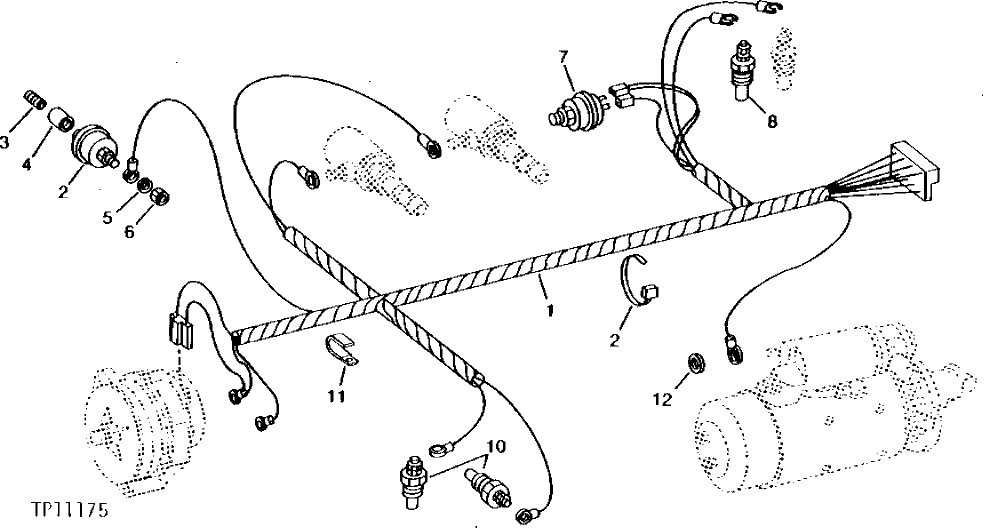

Запчасти John Deere 90B 15 - ENGINE WIRING HARNESS 80 - INSTRUMENTS, SWITCHES, GAUGES AND WIRING

1

AT66689

WIRING HARNESS

(SUB FOR AT56103, THIS APPLICATION)

1шт.

AT73341

WIRING HARNESS

1шт.

2

AT84200

SENDER

(SUB FOR AT24102) OIL PRESSURE

1шт.

3

29H19

THREADED NIPPLE

PIPE, 1/8" X 2-1/4" (PRESSURE SWITCH AND WATER TEMPERATURE)

2шт.

4

15H73

COUPLING

1/8"

1шт.

5

12H295

LOCK WASHER

0.190"

1шт.

6

14H631

NUT

0.190"

1шт.

7

AR43595

SWITCH

AIR FILTER VACUUM INDICATOR

1шт.

AL32975

TOUCH SWITCH

1шт.

8

AT37368

SENDER

WATER TEMPERATURE (USE WITH STEWART-WARNER)

1шт.

AT124052

SENDER

WATER TEMPERATURE (USE WITH VDO)

1шт.

9

R44302

TIE BAND

3шт.

10

AT85174

SWITCH

(SUB FOR AR27977)

2шт.

11

R45211

CLAMP

1шт.

12

24H1821

WASHER

9/32" X 47/64" X 1/16"

4шт.
