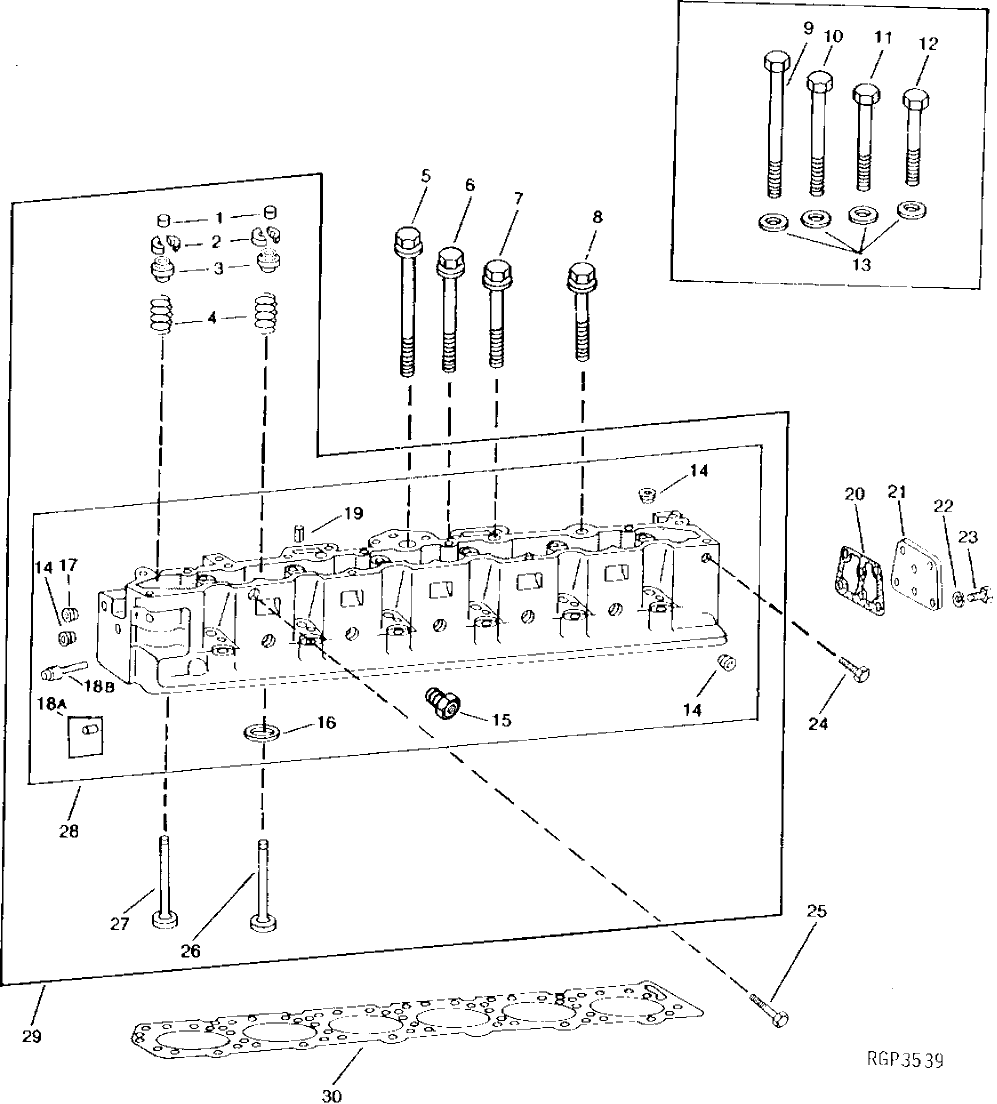

Запчасти John Deere 90B 20 - CYLINDER HEAD AND VALVES 10 - ENGINE

1

T20129

CAP

12шт.

2

T20077

RETAINER

24шт.

3

RE11410

ROTATOR

(SUB FOR AR41006)

12шт.

4

R26125

SPRING

12шт.

5

R88045

CAP SCREW

14.275 X 188 MM (9/16" X 7.402") (SUB FOR R62420)

7шт.

6

R88044

CAP SCREW

(SUB FOR R62419)

8шт.

7

R88043

CAP SCREW

(SUB FOR R63418) (USE WITH R87558)

11шт.

R88043

CAP SCREW

(SUB FOR R62418) (USE WITH R49650, R59850 OR R72128, APPL)

5шт.

8

R88042

CAP SCREW

(SUB FOR R62421)

6шт.

9

R62420

SCREW

14.275 X 190.500 MM (9/16" X 7-1/2") (SUB R88045)

7шт.

10

R62419

SCREW

14.275 X 162.052 MM (9/16" X 6.380") (SUB R88044) (SUB TY22450)

8шт.

11

R62418

SCREW

14.275 X 136.652 MM (9/16" X 5.380") (USE WITH R49650, R59850 OR R72128, APPL) (SUB R88043)

5шт.

R62418

SCREW

14.275 X 136.652 MM (9/16" X 5.380") (USE WITH R87558) (SUB R88043)

11шт.

12

R62421

SCREW

14.275 X 85.852 MM (9/16" X 3.380") (USE WITH R49650, R59850 OR R72128, APPL) (SUB R88042)

6шт.

13

R76126

WASHER

(SUB FOR R42364) (USE WITH R62418, R62419, R62420 OR R62421 ONLY, APPL)

26шт.

14

15H690

PIPE PLUG

3/4", (SUB FOR AR72318)

11шт.

15

R76491

PIPE PLUG

(SUB FOR RE10132)

1шт.

16

R78702

VALVE SEAT INSERT

STD (SUB FOR R50356, APPL)

ARшт.

R82508

VALVE SEAT INSERT

0.25 MM (.010") OS (SUB FOR R55061, APPL)

ARшт.

17

RE57836

PIPE PLUG

1/2", (SUB FOR AR72319 OR 15H624)

6шт.

18A

F1743R

DOWEL PIN

1шт.

18B

AT107509

PLUG

1шт.

19

34H387

SPRING PIN

3/16" X 3/4"

1шт.

20

R43595

GASKET

1шт.

21

R51347

COVER

1шт.

22

12H331

LOCK WASHER

3/8"

6шт.

23

19H2284

CAP SCREW

3/8" X 7/8"

6шт.

24

19H1756

CAP SCREW

5/8" X 1-1/2", (SUB FOR R45693, APPL)

2шт.

25

19H2367

CAP SCREW

5/8" X 3/4", (SUB FOR R45692, APPL)

1шт.

26

R50357

EXHAUST VALVE

STD

6шт.

R55056

EXHAUST VALVE

0.08 MM (.003") OS

6шт.

R55058

EXHAUST VALVE

0.38 MM (.015") OS

6шт.

R55060

EXHAUST VALVE

0.76 MM (.030") OS

6шт.

27

R50358

INTAKE VALVE

STD

6шт.

R55055

INTAKE VALVE

0.08 MM (.003") OS

6шт.

R55057

INTAKE VALVE

0.38 MM (.015") OS

6шт.

R55059

INTAKE VALVE

0.76 MM (.030") OS

6шт.

28

AR54554

CYLINDER HEAD

(MARKED R50360 OR R86700)

1шт.

SE500326

CYLINDER HEAD

(MARKED R50360 OR R86700) (REMANUFACTURED FOR AR54544) CALL 1-888-697-3626

1шт.

AR103505

CYLINDER HEAD

(MARKED R59876, R67906, R61521, R76384 OR R86696) (SUB FOR AR81615)

1шт.

SE500327

CYLINDER HEAD

(REMANUFACTURED FOR AR103505) CALL 1-888-697-3626

1шт.

29

RE11470

CYLINDER HEAD

1шт.

30

R48291

ENGINE CYLINDER HEAD GASKET

(MARKED R48291) (THIN)

1шт.

DOWEL PIN

(NO LONGER USED)

1шт.
