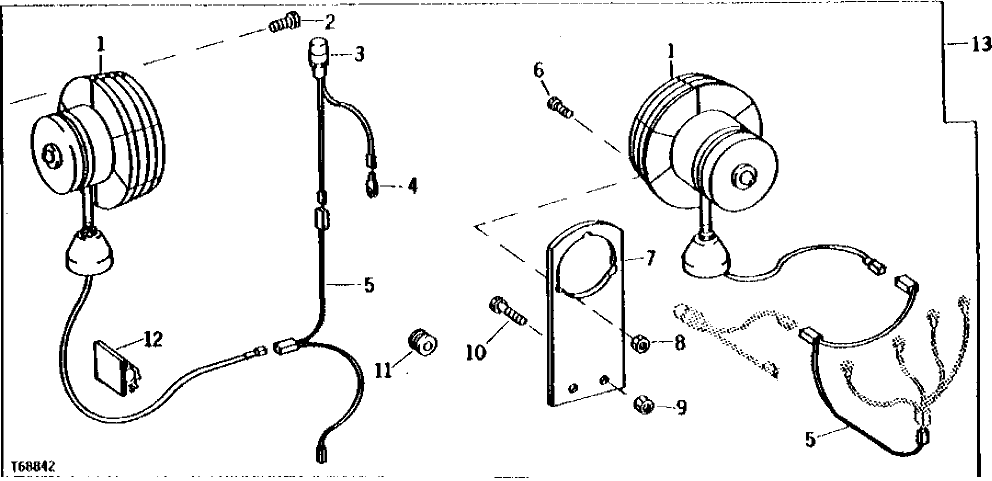

Запчасти John Deere 90B 14 - CAB CIRCULATING FAN INSTALLATION 75 - CAB

1

AU42031

BLOWER FAN

2шт.

2

37H105

SCREW

NO. 10 X 3/8"

3шт.

3

AT164924

FUSE HOLDER

(SUB FOR AT14193) (ALSO ORDER T82427)

1шт.

T82427

WASHER

(USE WITH FUSE HOLDER) (NOT ILLUSTRATED)

1шт.

4

T57655

ELEC. CONNECTOR TERMINAL

MALE

1шт.

5

AT62488

WIRING HARNESS

1шт.

6

21H1301

SCREW

0.190" X 1/2"

3шт.

7

T65978

BRACKET

1шт.

8

14H778

NUT

0.190"

3шт.

9

14H732

NUT

3/8"

2шт.

10

19H118

CAP SCREW

5/16" X 1"

2шт.

11

R28193

GROMMET

(SUB FOR M42869)

1шт.

12

T55941

ANGLE

3шт.

13

AT62490

FAN

1шт.
