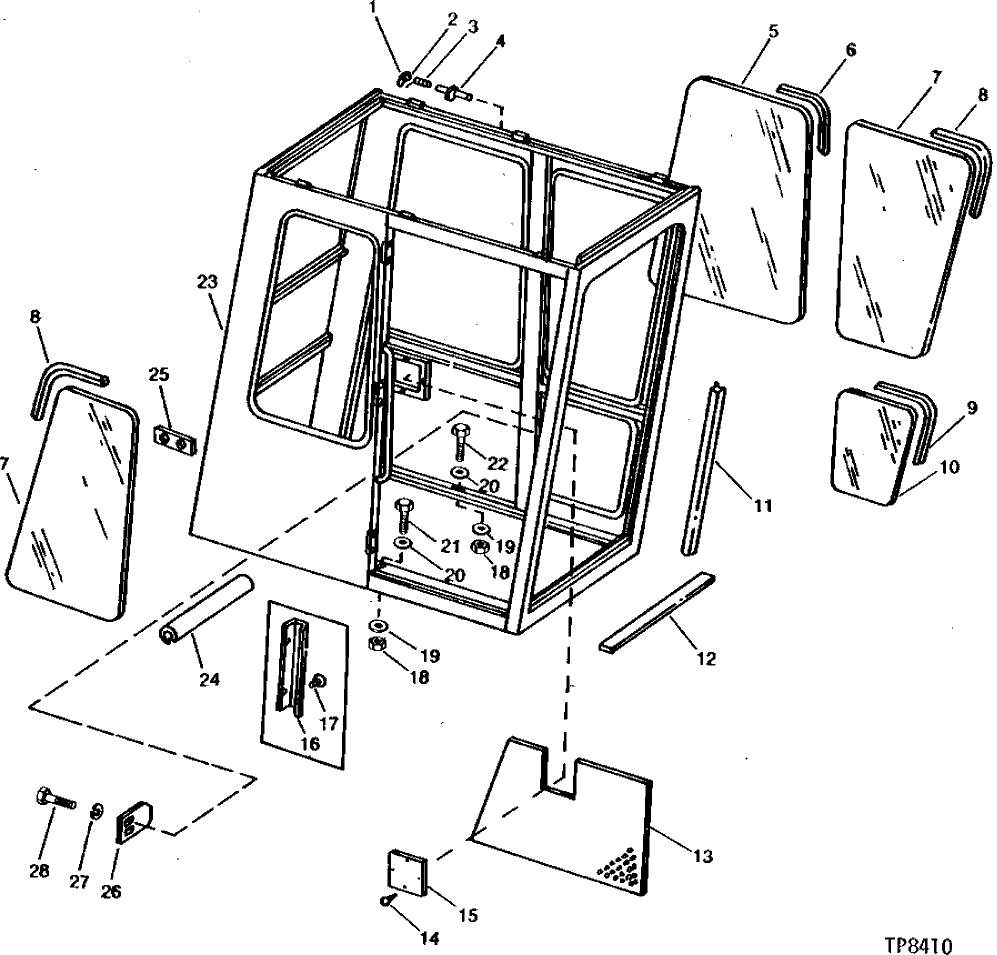

Запчасти John Deere 90B 2 - CAB 75 - CAB

1

M61002

HANDLE

2шт.

2

25H722

GROOVE PIN

1/8" X 1-1/4"

2шт.

3

F2822R

SPRING

2шт.

4

AU43698

ROD

HOLDS WINDOW OPEN

2шт.

5

U45376

WINDOWPANE

1шт.

6

MOLDING

3 035 MM (119.5") LONG (MAKE FROM T71383) (SUB FOR U43032)

1шт.

7

U45389

WINDOWPANE

R.H. REAR, L.H. FRONT WINDOW

2шт.

8

MOLDING

2 731 MM (107.5") LONG (MAKE FROM T71383) (SUB FOR U45390 AND U43032)

2шт.

9

MOLDING

1 550 MM (61") LONG (MAKE FROM T71383) (SUB FOR U45392 AND U43032)

1шт.

10

U45391

WINDOWPANE

LOWER FRONT WINDOW

1шт.

11

INSULATOR

SIDE, 1 524 MM (60") ( T72562 NO LONGER AVAILABLE)

2шт.

12

T63019

WEATHERSTRIP

CUT TO 3 048 MM (120") LENGTH, (SUB FOR R46250 OR T119593)

2шт.

13

T64169

INSULATOR

1шт.

14

37H20

SCREW

NO. 8 X 3/8"

4шт.

15

U45393

PLATE

1шт.

16

T42376

GUIDE

1шт.

17

37H20

SCREW

NO. 8 X 3/8"

4шт.

18

14H812

NUT

3/8"

2шт.

19

12H304

LOCK WASHER

3/8"

2шт.

20

24H1308

WASHER

13/32" X 1" X 0.134"

2шт.

21

19H3065

CAP SCREW

3/8" X 2"

1шт.

22

19H2676

CAP SCREW

3/8" X 1"

1шт.

23

AT42435

CAB

(SUB FOR AT35683) (SUB AT57110)

1шт.

CAB

(WHEN AT57110 IS NO LONGER AVAILABLE, SUB AT55748, (4) U45426 AND (2) U45428)

1шт.

CAB

(SUB FOR AT59710, THIS APPLICATION) (WHEN AT62495 IS NO LONGER AVAILABLE, ORDER AT59708)

1шт.

AT59708

CAB

(SUB FOR AT62495)

1шт.

24

T60811

BULK HOSE

(ALSO ORDER T71862 AND T75192) 203 MM LONG (5/16" X 8") (FOR PILOT CONTROL HOSES) (SUB FOR R44921)

1шт.

25

T75188

STRAP

1шт.

26

T62374

STRIKER

1шт.

27

24H1286

WASHER

9/32" X 1/2" X 1/16"

2шт.

28

19H1948

CAP SCREW

1/4" X 3/4"

2шт.
