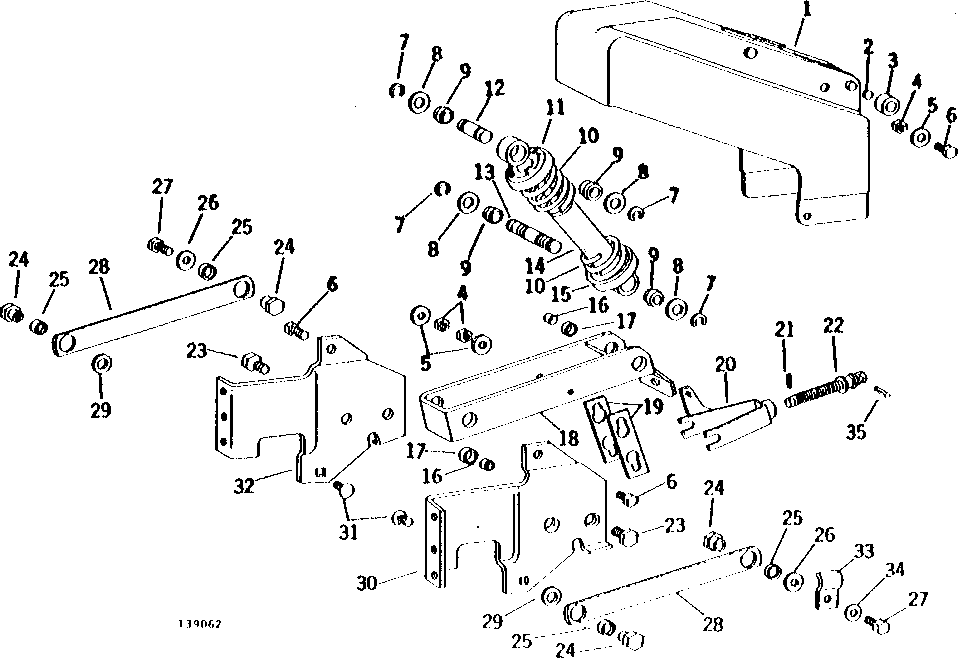

Запчасти John Deere 90B 14 - SEAT SUPPORT 70 - GRILLE, HOOD, FENDERS AND BUMPER

1

AR26632

FRAME

1шт.

2

SOLID SHIM

(A) ( R26872 NO LONGER AVAILABLE) .25 MM (.010") STEEL

ARшт.

SOLID SHIM

(A) ( R26873 NO LONGER AVAILABLE) .508 MM (.020") STEEL

ARшт.

3

R26436

ROLLER

4шт.

4

E50102

LOCK NUT

(SUB FOR C744DN OR (4) M63440)

4шт.

5

R27441

WASHER

4шт.

6

19H3239

CAP SCREW

3/8" X 1-1/4"

4шт.

7

F2863R

SNAP RING

4шт.

8

R1836R

WASHER

4шт.

9

R26832

BUSHING

RUBBER

4шт.

10

R26877

SPRING

1шт.

11

R27442

CAP

UPPER

1шт.

12

R26875

PIN FASTENER

UPPER

1шт.

13

R26876

SHAFT

LOWER

1шт.

14

AR71976

SHOCK ABSORBER

(SUB FOR AR26529 AND AR69854)

1шт.

15

R26879

CAP

LOWER

1шт.

16

R27440

BUSHING

4шт.

17

R51648

WASHER

(SUB FOR R36704)

4шт.

18

AR60029

ARM

(SUB FOR AR36048)

1шт.

19

R26878

LINK

SHOCK ABSORBER, LOWER SHAFT

2шт.

20

AR26530

YOKE

(SUB AR69271) ADJUSTING

1шт.

AR69271

YOKE

ADJUSTING

1шт.

21

34H247

SPRING PIN

1/8" X 3/4"

1шт.

22

R27121

SCREW

(SUB R57623 AND 34H323)

1шт.

R57623

SCREW

1шт.

23

R31505

BOLT

4шт.

24

R26880

NUT

4шт.

25

R51648

WASHER

(SUB FOR R36704)

4шт.

26

R27441

WASHER

2шт.

27

19H2676

CAP SCREW

3/8" X 1"

2шт.

28

AR31977

LINK

2шт.

29

R48450

WASHER

(SUB FOR R26113)

2шт.

30

R27118

SUPPORT

R.H

1шт.

31

10H1026

BOLT

PLOW, 3/8" X 1"

2шт.

32

R27119

SUPPORT

L.H

1шт.

33

U12288

CLAMP

1шт.

34

24H1305

WASHER

13/32" X 13/16" X 0.065"

3шт.

35

34H323

SPRING PIN

1/4" X 3"

1шт.
