Запчасти John Deere 90B 36 - HYDRAULIC OIL COOLER FILTER 60 - HYDRAULIC SYSTEM

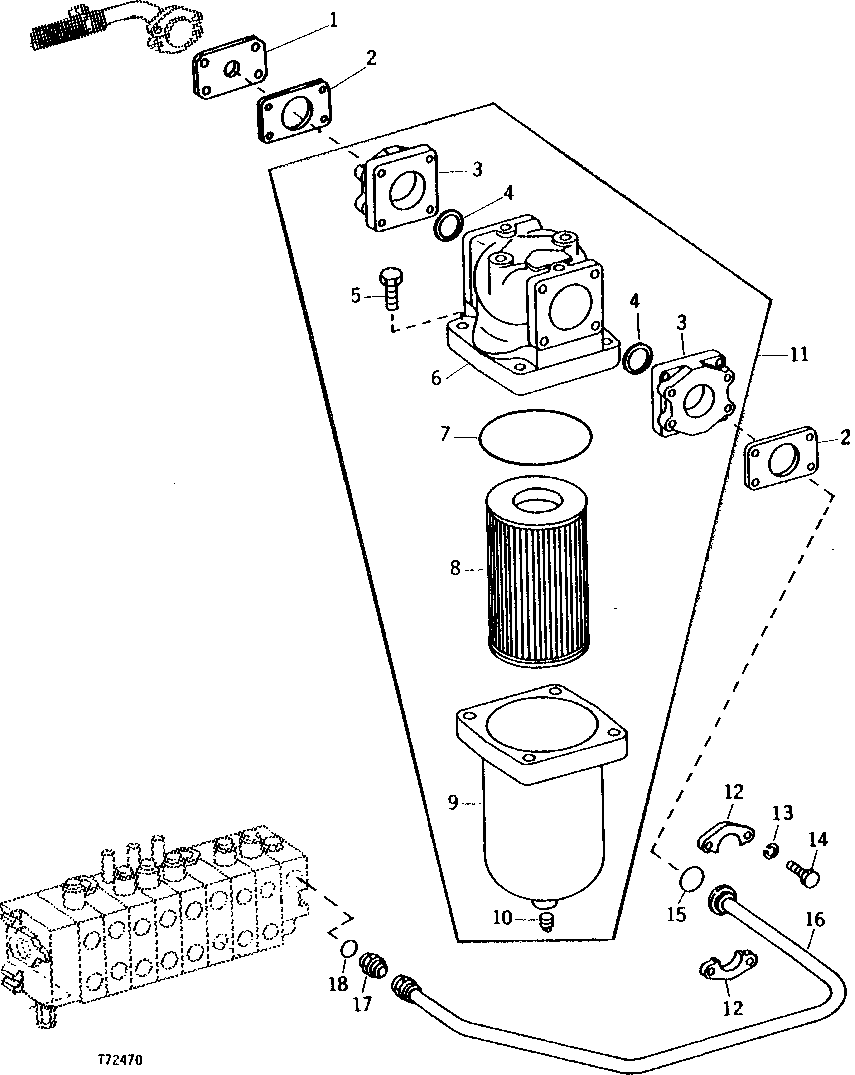

Схема запчастей John Deere 90B - 36 - HYDRAULIC OIL COOLER FILTER 60 - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

T70291

PLATE

1шт.

2

U45160

GASKET

2шт.

3

T63702

ADAPTER FITTING

2шт.

4

T42777

SEALING WASHER

2шт.

5

19H2735

CAP SCREW

1/2" X 2"

4шт.

6

AT60461

CYLINDER HEAD

1шт.

7

R34733

WASHER

1шт.

8

AT71582

FILTER ELEMENT

(SUB FOR AT45810, THIS APPLICATION)

1шт.

9

T63703

HOUSING

1шт.

10

15H623

PIPE PLUG

SQ. HD., 3/8"

1шт.

11

FILTER

( AT60460 USE IF AVAILABLE)

1шт.

12

X51H-24

FLANGE FITTING

(SUB FOR R29422 OR T47649) SPLIT HALF

2шт.

13

12H301

LOCK WASHER

1/2"

4шт.

14

19H2473

CAP SCREW

1/2" X 1-3/4"

4шт.

15

T34248

O-RING

(SUB FOR B3690R, THIS APPLICATION)

1шт.

16

AT36386

TUBE

1шт.

17

R37187

ADAPTER FITTING

1шт.

18

R47156

O-RING

(SUB FOR U13639, THIS APPLICATION)

1шт.

Выбрано товаров: 18
