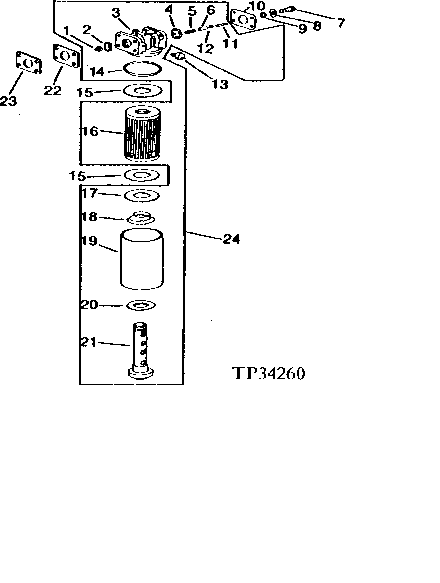

Запчасти John Deere 90B 34 - HYDRAULIC OIL COOLER FILTER 60 - HYDRAULIC SYSTEM

1

W13632

LOCK NUT

BYPASS

1шт.

2

W13627

VALVE

BYPASS

1шт.

3

CYLINDER HEAD

( U45167 USE IF AVAILABLE)

1шт.

4

W13626

GUIDE

1шт.

5

U44346

SPRING

1шт.

6

W13624

SPACER

1шт.

7

19H2473

CAP SCREW

1/2" X 1-3/4"

8шт.

8

24H1341

WASHER

17/32" X 15/16" X 0.060"

8шт.

9

U45161

SEAL

4шт.

10

U45160

GASKET

1шт.

11

W13631

SCREW

BYPASS FILTER HEAD

1шт.

12

W13628

ROUND RETAINER

1шт.

13

AU43217

SWITCH

1шт.

15H558

PIPE PLUG

HEX. CTSK., 1/8" (SECOND AND THIRD FILTER)

2шт.

14

W13630

WASHER

1шт.

15

U46679

GASKET

2шт.

16

AT79080

FILTER ELEMENT

(SUB FOR AT39361, AT62042 AND AT77508) (ALSO ORDER W13629 AND W13630)

1шт.

17

W18421

WASHER

1шт.

18

W13621

SPRING

CONICAL

1шт.

19

W13620

HOUSING

1шт.

20

W13629

WASHER

CENTER POST

1шт.

21

W13619

POST

CENTER

1шт.

22

U45160

GASKET

1шт.

23

T35872

ORIFICE

1шт.

24

AT35268

FILTER

2шт.
