Запчасти John Deere 90B 30 - OIL RESERVOIR 60 - HYDRAULIC SYSTEM

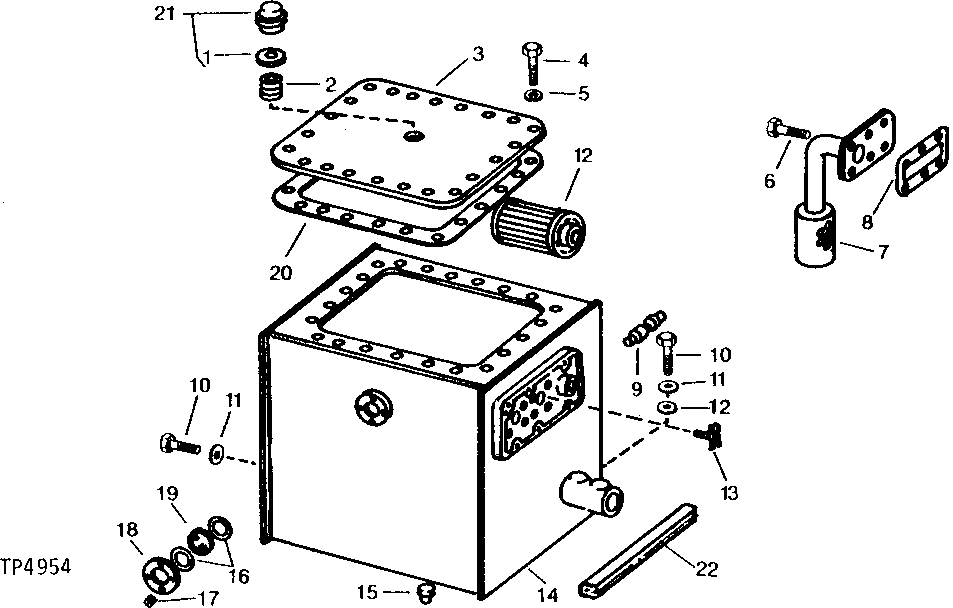

Схема запчастей John Deere 90B - 30 - OIL RESERVOIR 60 - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

R31486

WASHER

1шт.

2

A4234R

THREADED NIPPLE

1шт.

3

AT34196

COVER

(A)

1шт.

4

19H3239

CAP SCREW

(A) 3/8" X 1-1/4"

22шт.

5

24H1308

WASHER

13/32" X 1" X 0.134"

22шт.

6

19H2898

CAP SCREW

1/2" X 1-1/4"

6шт.

7

AT34195

TUBE

RETURN

1шт.

8

T35273

GASKET

1шт.

9

AT37368

SENDER

TEMPERATURE

1шт.

10

19H2993

CAP SCREW

1/2" X 1-1/2"

8шт.

11

12H301

LOCK WASHER

1/2"

8шт.

12

AT32408

FILTER

SUMP

1шт.

13

AT13740

DRAIN VALVE

1шт.

14

RESERVOIR

INCLUDES ALL PARTS IDENTIFIED BY (A) ( AT35084 USE IF AVAILABLE)

1шт.

15

15H585

PIPE PLUG

SQ. HD., 3/4"

1шт.

16

N131838

O-RING

(SUB FOR U10289, THIS APPLICATION)

2шт.

17

21H1300

SCREW

0.190" X 3/8", RD. HD., NO. 10 X 3/8"

4шт.

18

U13551

WASHER

1шт.

19

U13425

WINDOWPANE

1шт.

20

U45159

GASKET

(A)

1шт.

21

AR30697

CAP

1шт.

22

ISOLATOR

102 MM (4") LONG (MAKE FROM R41358, 1.2M (4') BULK)

1шт.

Выбрано товаров: 22
