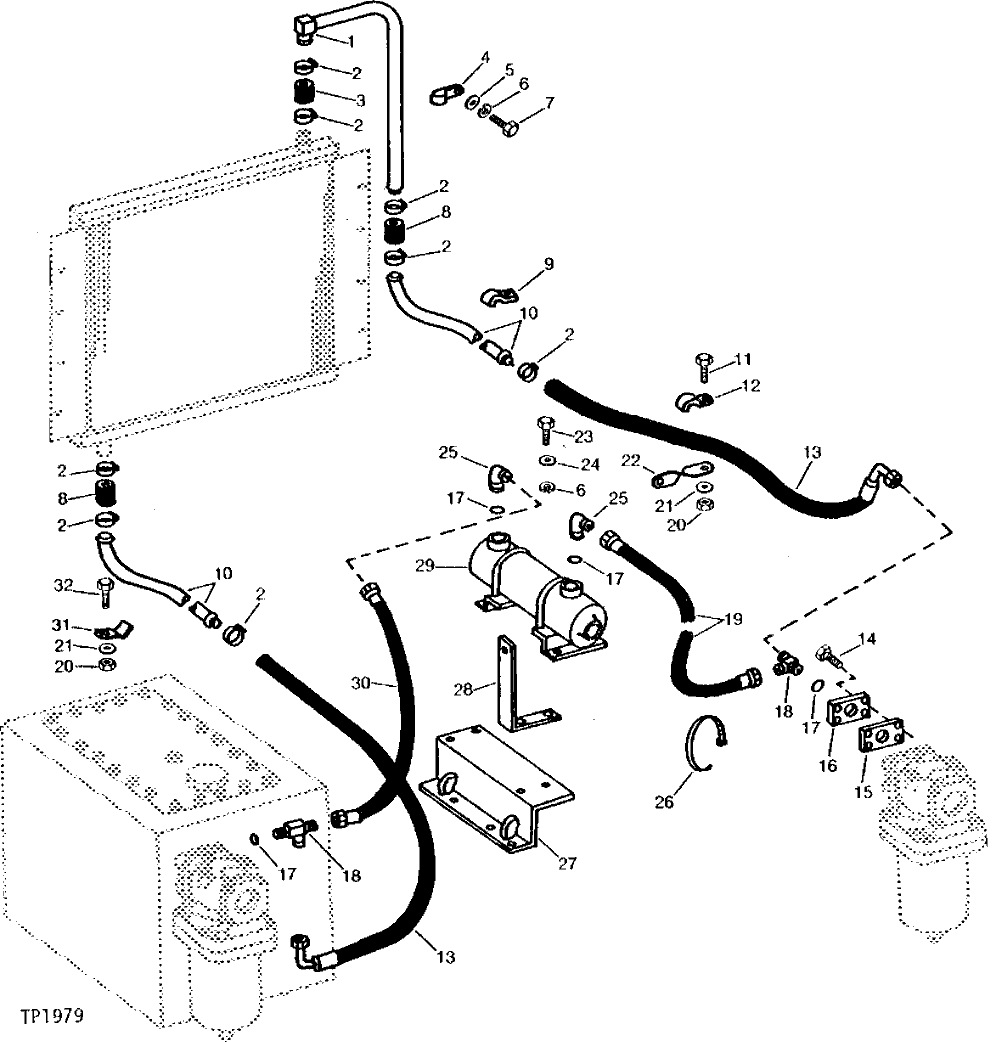

Запчасти John Deere 90B 29A - HYDRAULIC OIL COOLER LINES 60 - HYDRAULIC SYSTEM

1

AT43668

TUBE

1шт.

2

AR21839

CLAMP

1шт.

3

HOSE

42 MM LONG (1" X 1-5/8") (MAKE FROM U11186, 3M (10') BULK)

1шт.

4

T35699

CLAMP

1шт.

5

24H1136

WASHER

11/32" X 11/16" X 0.065"

1шт.

6

12H303

LOCK WASHER

5/16"

5шт.

7

19H2664

CAP SCREW

5/16" X 3/4"

1шт.

8

HOSE

64 MM LONG (1" X 2-1/2") (MAKE FROM U11186, 3M (10') BULK)

1шт.

9

T41904

CLAMP

2шт.

10

T35940

LINE

2шт.

11

19H2676

CAP SCREW

3/8" X 1"

1шт.

12

T35829

CLAMP

1шт.

13

AT67825

HYDRAULIC HOSE - FABRICATE

2шт.

14

19H2993

CAP SCREW

1/2" X 1-1/2"

4шт.

15

U45160

GASKET

1шт.

16

T70845

ADAPTER FITTING

1шт.

17

R29936

O-RING

4шт.

18

X20R5OX-S

TEE FITTING

(SUB FOR AT31891)

2шт.

19

AT64995

HYDRAULIC HOSE - FABRICATE

1 792 MM LONG (1-5/16" X 71")

1шт.

20

14H812

NUT

3/8"

2шт.

21

12H304

LOCK WASHER

3/8"

2шт.

22

U46355

BRACKET

1шт.

23

19H2831

CAP SCREW

5/16" X 1-1/2"

4шт.

24

24H1136

WASHER

11/32" X 11/16" X 0.065"

4шт.

25

X2503-16-16

ELBOW FITTING

(SUB FOR AU42832) 90°

2шт.

26

H77698

TIE BAND

(SUB FOR T44946)

8шт.

27

AT67826

SUPPORT

1шт.

28

T68775

ANGLE

2шт.

29

AT65863

OIL COOLER

AUXILIARY

1шт.

30

AT54020

HYDRAULIC HOSE - FABRICATE

1 350 MM LONG (1-5/16" X 53")

1шт.

31

U43641

CLAMP

1шт.

32

19H2633

CAP SCREW

3/8" X 1-1/2"

1шт.
