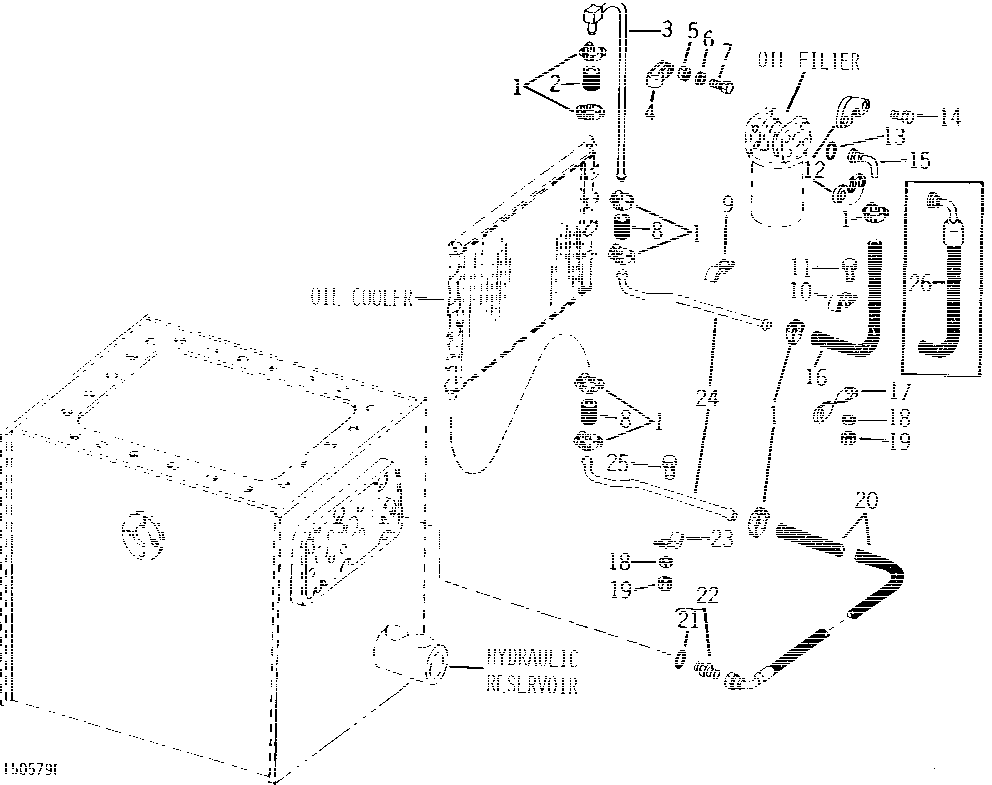

Запчасти John Deere 90B 27 - OIL COOLER OIL LINES 60 - HYDRAULIC SYSTEM

1

AR21839

CLAMP

8шт.

AR21839

CLAMP

8шт.

2

HOSE

42 MM (1" X 1-5/8") (MAKE FROM U11186, 3M (10') BULK) (SUB FOR T44721)

1шт.

3

AT43668

TUBE

1шт.

4

T35699

CLAMP

(OIL COOLER TUBE TO OIL COOLER MOUNTING BOLTS)

1шт.

5

24H1136

WASHER

11/32" X 11/16" X 0.065"

1шт.

6

12H303

LOCK WASHER

5/16"

1шт.

7

19H2664

CAP SCREW

5/16" X 3/4"

1шт.

8

HOSE

64 MM (1" X 2-1/2") OIL COOLER LINE (MAKE FROM U11186, 3M (10') BULK) (SUB FOR T35858 AND T37798)

2шт.

9

T41904

CLAMP

(OIL COOLER TUBE TO RADIATOR SUPPORT PLATE)

2шт.

10

T35829

CLAMP

1шт.

11

19H2676

CAP SCREW

3/8" X 1"

1шт.

12

X51H-24

FLANGE FITTING

(SUB FOR R29422 OR T47649) SPLIT HALF

2шт.

13

B3690R

O-RING

1шт.

14

19H2993

CAP SCREW

1/2" X 1-1/2"

4шт.

15

AT37847

HOSE FITTING

90°, BEADED

1шт.

16

T57000

HOSE

1шт.

17

U46355

BRACKET

1шт.

18

12H304

LOCK WASHER

3/8"

2шт.

19

14H812

NUT

3/8"

2шт.

20

AT39944

HOSE

RESERVOIR TO OIL COOLER LINE

1шт.

21

R29936

O-RING

1шт.

22

AU43250

FITTING

1шт.

23

U43641

CLAMP

1шт.

24

T35940

LINE

2шт.

25

19H2633

CAP SCREW

3/8" X 1-1/2"

1шт.

26

AT39943

HOSE

FILTER TO OIL COOLER, (SUB T57000, AT37847 AND AR21839)

1шт.
