25 - OIL LINES, CONTROL VALVE TO OIL FILTER ON RESERVOIR

Запчасти John Deere 90B 25 - OIL LINES, CONTROL VALVE TO OIL FILTER ON RESERVOIR 60 - HYDRAULIC SYSTEM

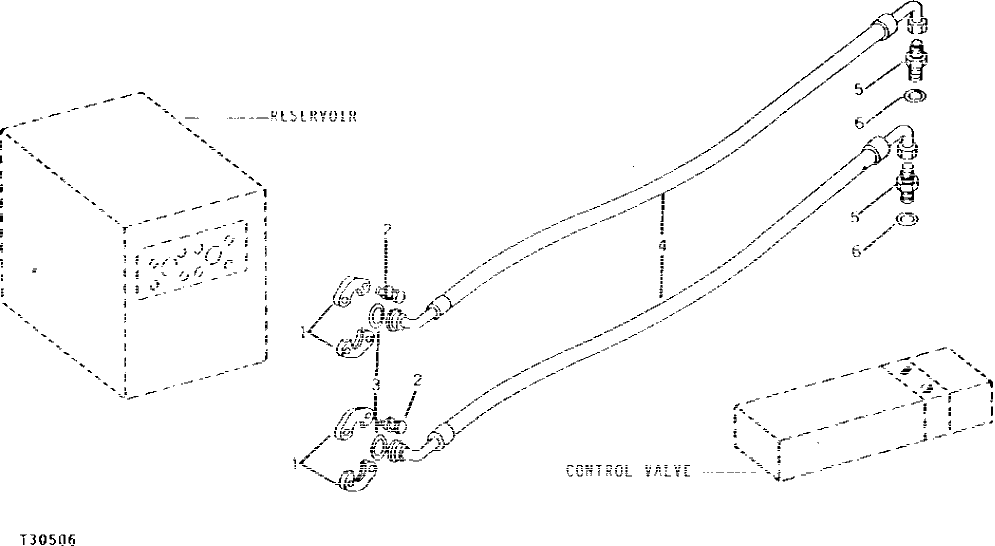

Схема запчастей John Deere 90B - 25 - OIL LINES, CONTROL VALVE TO OIL FILTER ON RESERVOIR 60 - HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

X51H-24

FLANGE FITTING

(SUB FOR R29422 OR T47649) SPLIT HALF

4шт.

2

19H2993

CAP SCREW

1/2" X 1-1/2"

8шт.

12H301

LOCK WASHER

1/2"

8шт.

3

B3690R

O-RING

2шт.

4

AU43303

HYDRAULIC HOSE

2шт.

5

R37187

ADAPTER FITTING

STRAIGHT

2шт.

6

U13639

O-RING

2шт.
