23 - LEFT FLOW DIVIDER EXCESS FLOW TO MID-SECTION INLET, SPLIT FLOW

Запчасти John Deere 90B 23 - LEFT FLOW DIVIDER EXCESS FLOW TO MID-SECTION INLET, SPLIT FLOW 60 - HYDRAULIC SYSTEM

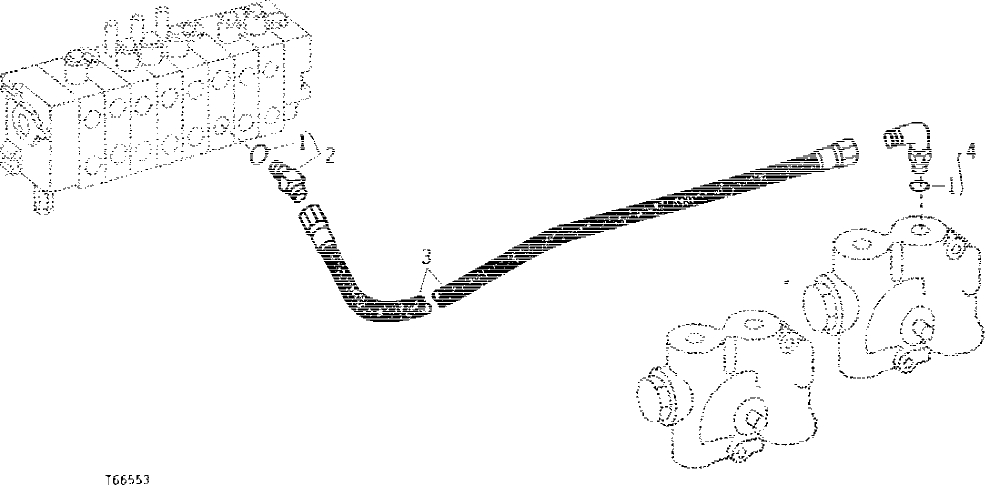

Схема запчастей John Deere 90B - 23 - LEFT FLOW DIVIDER EXCESS FLOW TO MID-SECTION INLET, SPLIT FLOW 60 - HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

R29936

O-RING

2шт.

2

AU43288

ELBOW FITTING

45°

1шт.

3

AT34207

HYDRAULIC HOSE - FABRICATE

1 118 MM LONG (1-5/16" X 44")

1шт.

4

X2503-16-16

ELBOW FITTING

(SUB FOR AU42832) 90°

1шт.
