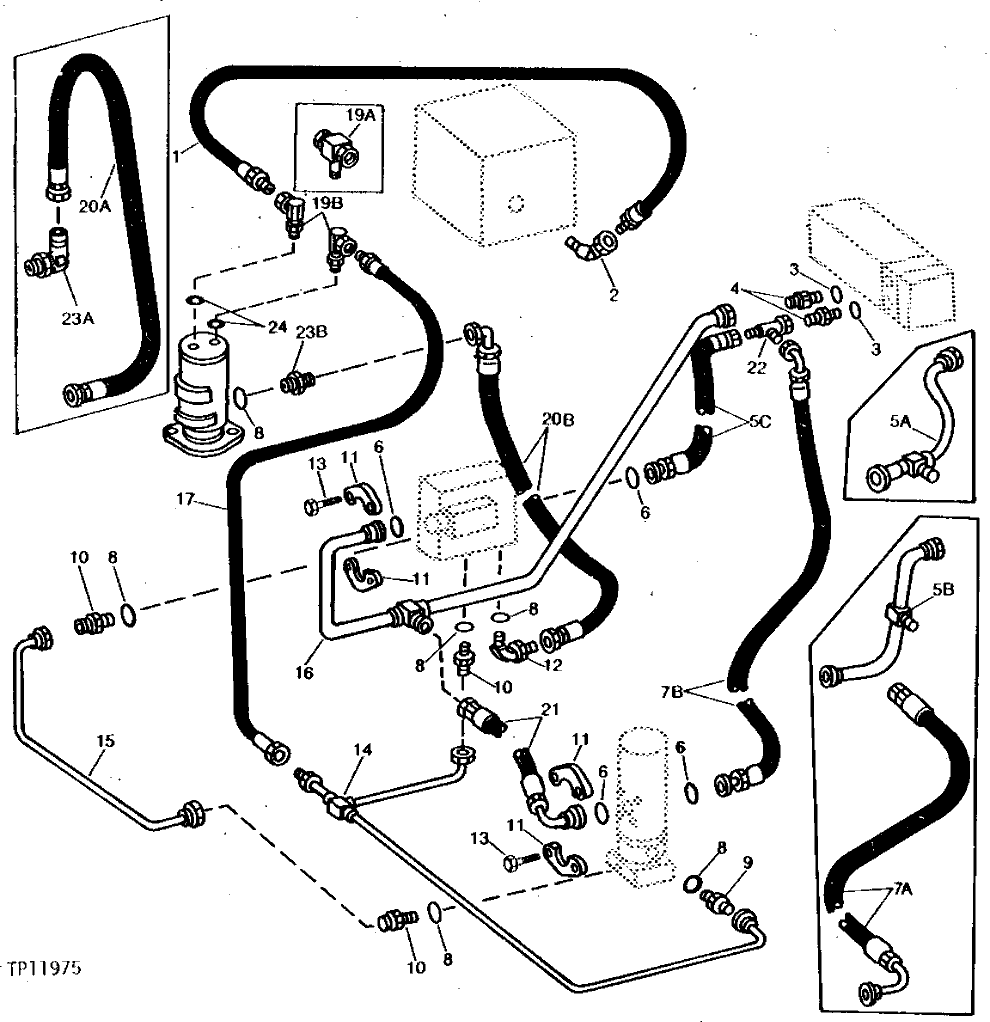

Запчасти John Deere 90B 14 - SWING MOTOR AND CROSSOVER VALVE HYDRAULICS 60 - HYDRAULIC SYSTEM

1

AU43761

HYDRAULIC HOSE - FABRICATE

1 575 MM LONG (1/2" X 62") ROTARY MANIFOLD TO RESERVOIR

1шт.

2

JD184

ELBOW FITTING

1шт.

3

R29936

O-RING

2шт.

4

T26767

FITTING

(SUB FOR AU43250)

2шт.

5A

AT41422

LINE

CONTROL VALVE TO CROSSOVER RELIEF VALVE

1шт.

5B

AT48175

LINE

CONTROL VALVE TO CROSSOVER RELIEF, (SUB AT66471, AT66472 AND AT62908)

1шт.

5C

AT66471

HYDRAULIC HOSE - FABRICATE

787 MM LONG (1-5/16" X 1-1/4" X 31")

1шт.

6

N131838

O-RING

(SUB FOR U10289, THIS APPLICATION)

4шт.

7A

AT55895

HYDRAULIC HOSE - FABRICATE

TUBE TO SWING MOTOR, (SUB FOR AT41421)

1шт.

AT48177

HYDRAULIC HOSE

1шт.

7B

AT66472

HYDRAULIC HOSE

1шт.

8

R26448

O-RING

6шт.

9

R26892

FITTING

(SUB FOR T42392)

1шт.

10

R52721

ADAPTER FITTING

4шт.

11

R29867

FLANGE FITTING

SPLIT FLANGE HALF

8шт.

12

AT38033

ELBOW FITTING

90°, (SUB FOR AR26722, THIS APPLICATION)

1шт.

13

19H3205

CAP SCREW

7/16" X 1-1/2"

16шт.

14

AT41426

OIL LINE

VALVE BLOCK TO SWING MOTOR

1шт.

15

AT41428

TUBE

VALVE BLOCK TO SWING BRAKE

1шт.

AT50619

OIL LINE

SWING BRAKE

1шт.

16

AT41423

TUBE

CONTROL VALVE TO CROSSOVER, (SUB AT48176 AND AT48177)

1шт.

AT48176

TUBE

CONTROL VALVE TO CROSSOVER RELIEF

1шт.

AT56574

TUBE

1шт.

17

AT41425

HYDRAULIC HOSE - FABRICATE

509 MM LONG (1/2" X 20")

1шт.

18

JD151

ADAPTER FITTING

1шт.

19A

AN11336

TEE FITTING

(USE WITH AT73540)

1шт.

19B

AU11849

ADAPTER FITTING

90°, (USE WITH AT79696)

2шт.

20A

AT37051

HYDRAULIC HOSE - FABRICATE

712 MM LONG (9/16" X 28")

1шт.

20B

AT71082

HYDRAULIC HOSE - FABRICATE

1шт.

21

AT55895

HYDRAULIC HOSE - FABRICATE

(SUB FOR AT41421)

1шт.

AT48177

HYDRAULIC HOSE

1шт.

22

AT62908

TEE FITTING

1шт.

23A

AT35121

ELBOW FITTING

90°

1шт.

23B

R27212

FITTING

1шт.

24

R47150

O-RING

(USE WITH AT79696)

2шт.
