12 - HYDRAULIC OIL LINES FROM COUNTERBALANCE VALVE TO ROTARY MANIFOLD

Запчасти John Deere 90B 12 - HYDRAULIC OIL LINES FROM COUNTERBALANCE VALVE TO ROTARY MANIFOLD 60 - HYDRAULIC SYSTEM

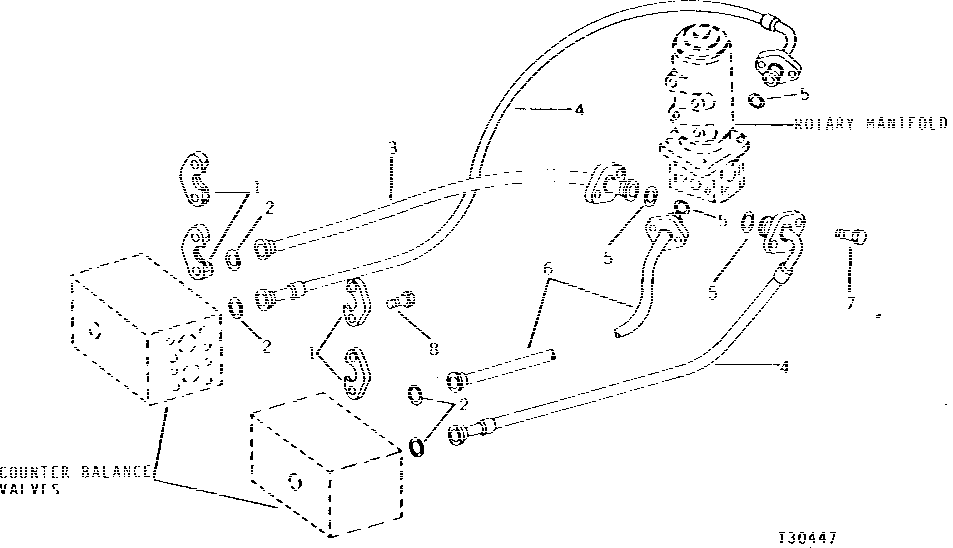

Схема запчастей John Deere 90B - 12 - HYDRAULIC OIL LINES FROM COUNTERBALANCE VALVE TO ROTARY MANIFOLD 60 - HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

R29867

FLANGE FITTING

SPLIT HALVES

8шт.

2

N131838

O-RING

(SUB FOR U10289, THIS APPLICATION)

4шт.

3

AT40245

OIL TUBE

LEFT REAR

1шт.

4

AT40246

HYDRAULIC HOSE

SWIVEL

2шт.

5

T78313

O-RING

(SUB FOR H61355)

4шт.

6

AT40244

OIL LINE

RIGHT REAR

1шт.

7

19H2509

CAP SCREW

1/2" X 1-1/2"

8шт.

8

19H3104

CAP SCREW

7/16" X 1-1/4"

8шт.
