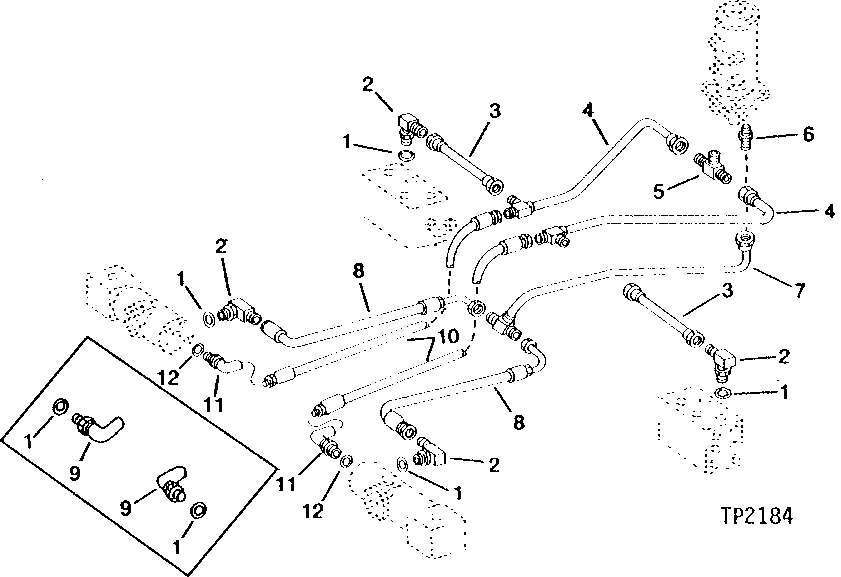

Запчасти John Deere 90B 11 - HYDRAULIC OIL LINES FROM TRACK DRIVE MOTORS TO ROTARY MANIFOLD 60 - HYDRAULIC SYSTEM

1

T70177

O-RING

(SUB FOR R26448, THIS APPLICATION)

6шт.

T70177

O-RING

4шт.

2

AT35120

ELBOW FITTING

90°, (SUB FOR AR37017 AND AT32337)

4шт.

3

AT40249

LINE

TO COUNTERBALANCE VALVE

2шт.

4

AT40248

TUBE

1шт.

5

U11648

TEE FITTING

1шт.

6

T41225

ADAPTER FITTING

1шт.

7

AT40247

OIL LINE

1шт.

8

AT40257

HYDRAULIC HOSE - FABRICATE

MOTOR PILOT

2шт.

9

AT35121

ELBOW FITTING

90° ADJUSTABLE, (SUB FOR AR26725)

2шт.

10

AU43553

HYDRAULIC HOSE - FABRICATE

MOTOR DRAIN

2шт.

11

AR31674

FITTING

90°

2шт.

12

R26375

O-RING

2шт.
