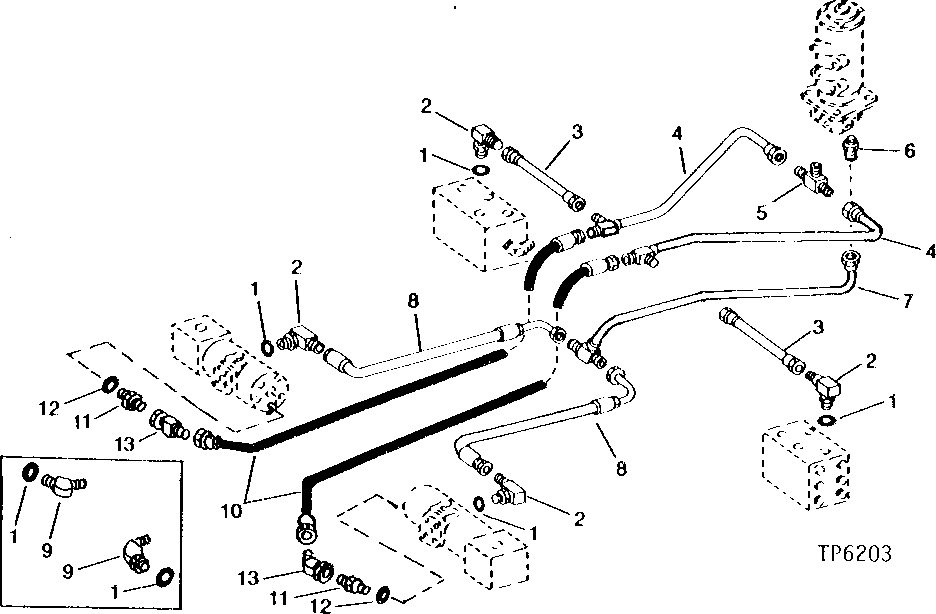

Запчасти John Deere 90B 10 - HYDRAULIC OIL LINES FROM PROPEL MOTORS TO ROTARY MANIFOLD 60 - HYDRAULIC SYSTEM

1

T70177

O-RING

(SUB FOR R26448, THIS APPLICATION)

6шт.

T70177

O-RING

4шт.

2

AT35120

ELBOW FITTING

90°, (SUB FOR AR37017 AND AT32337)

4шт.

3

AT40249

LINE

TO COUNTERBALANCE VALVE

2шт.

4

AT40248

TUBE

TO ROTARY MANIFOLD

1шт.

5

U11648

TEE FITTING

1шт.

6

T41225

ADAPTER FITTING

1шт.

7

AT40247

OIL LINE

PILOT

1шт.

8

AT40598

HYDRAULIC HOSE - FABRICATE

R.H. MOTOR PILOT

2шт.

9

AT38033

ELBOW FITTING

45°, (SUB FOR AR26722, THIS APPLICATION)

2шт.

10

AT40600

HYDRAULIC HOSE - FABRICATE

762 MM LONG (3/4" X 9/16" X 30")

2шт.

11

R36426

FITTING

2шт.

12

R26375

O-RING

2шт.

13

AU43156

ELBOW FITTING

45°

2шт.
