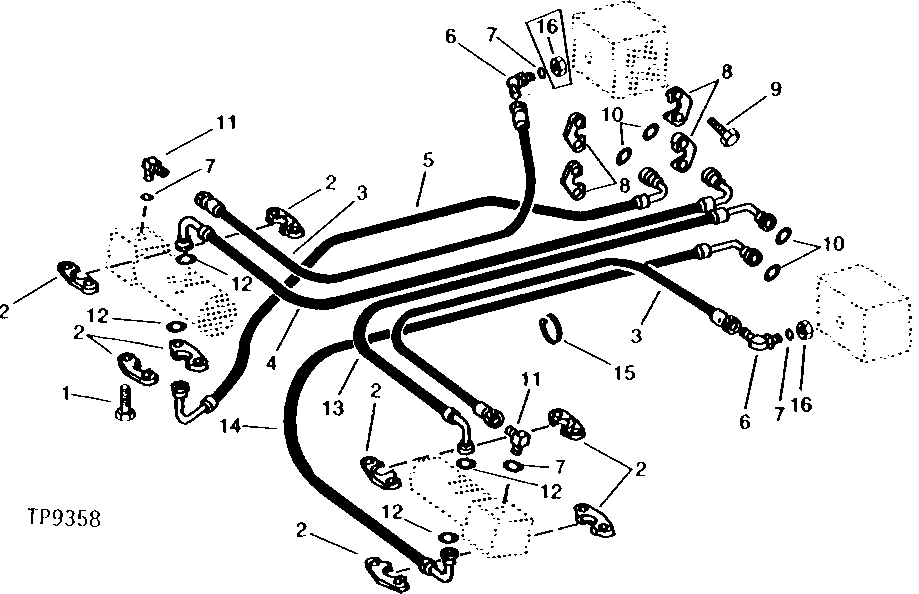

Запчасти John Deere 90B 9 - HYDRAULIC OIL LINES FOR BRAKE AND TRACK DRIVE MOTORS 60 - HYDRAULIC SYSTEM

1

19H3579

CAP SCREW

1/2" X 1-3/8"

16шт.

2

X51H-24

FLANGE FITTING

(SUB FOR R29422 OR T47649)

8шт.

3

AT40597

HYDRAULIC HOSE - FABRICATE

1066.8 MM LONG (3/4" X 42") (9-1/2-FOOT UNDERCARRIAGE)

2шт.

AT40255

HYDRAULIC HOSE - FABRICATE

838.2 MM LONG (3/4" X 33") (8-FOOT UNDERCARRIAGE)

2шт.

4

AT47149

HYDRAULIC HOSE

UPPER L.H. PROPEL MOTOR (9-1/2-FOOT UNDERCARRIAGE)

1шт.

AT47153

HYDRAULIC HOSE

UPPER L.H. PROPEL MOTOR (8-FOOT UNDERCARRIAGE)

1шт.

5

AT47150

HYDRAULIC HOSE

LOWER L.H. PROPEL MOTOR (9-1/2-FOOT UNDERCARRIAGE)

1шт.

AT47154

HYDRAULIC HOSE

LOWER L.H. PROPEL MOTOR (8-FOOT UNDERCARRIAGE)

1шт.

6

AT38033

ELBOW FITTING

45°, (SUB FOR AR26722, THIS APPLICATION)

4шт.

7

T70177

O-RING

(SUB FOR R26448, THIS APPLICATION)

4шт.

8

R29867

FLANGE FITTING

SPLIT HALVES

8шт.

9

19H3104

CAP SCREW

7/16" X 1-1/4"

16шт.

10

N131838

O-RING

(SUB FOR U10289, THIS APPLICATION)

4шт.

11

AT35120

ELBOW FITTING

90°, (SUB FOR AT32337)

2шт.

12

T34248

O-RING

(SUB FOR B3690R, THIS APPLICATION)

4шт.

13

AT47150

HYDRAULIC HOSE

UPPER R.H. PROPEL MOTOR (9-1/2-FOOT UNDERCARRIAGE)

1шт.

AT47151

HYDRAULIC HOSE

UPPER R.H. PROPEL MOTOR (8-FOOT UNDERCARRIAGE)

1шт.

14

AT47149

HYDRAULIC HOSE

LOWER R.H. PROPEL MOTOR (9-1/2-FOOT UNDERCARRIAGE)

1шт.

AT47152

HYDRAULIC HOSE - FABRICATE

LOWER R.H. PROPEL MOTOR (8-FOOT UNDERCARRIAGE)

1шт.

15

AT41775

CLAMP

2шт.

16

T48862

PLATE

2шт.
