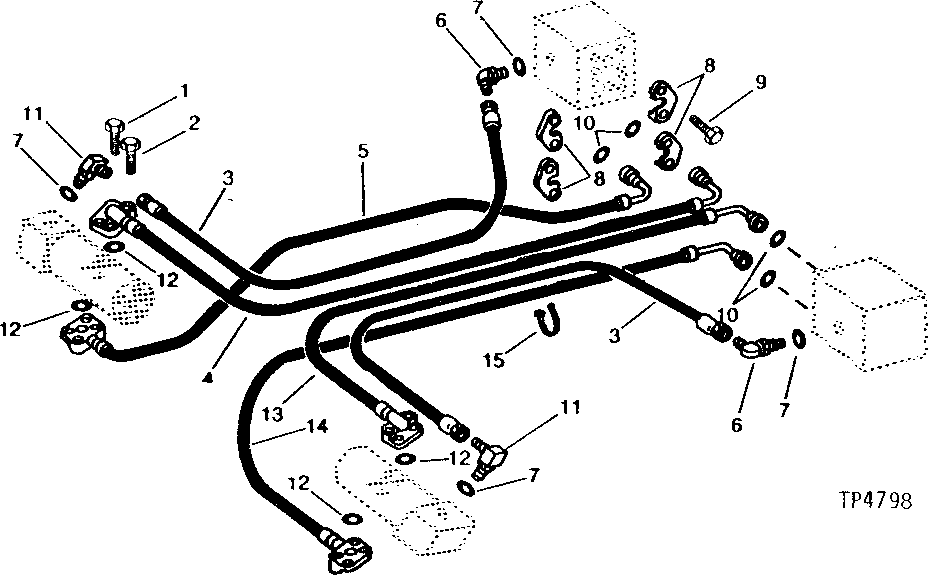

Запчасти John Deere 90B 8 - HYDRAULIC OIL LINES FOR BRAKE AND TRACK DRIVE MOTORS 60 - HYDRAULIC SYSTEM

1

19H2993

CAP SCREW

1/2" X 1-1/2"

8шт.

2

19H3057

CAP SCREW

1/2" X 2-3/4"

8шт.

3

AT40597

HYDRAULIC HOSE - FABRICATE

BRAKE, 1 067 MM LONG (3/4" X 42") (9-1/2-FOOT UNDERCARRIAGE)

2шт.

AT40255

HYDRAULIC HOSE - FABRICATE

838 MM LONG (3/4" X 33")

2шт.

4

AT40592

HOSE

UPPER L.H. PROPEL MOTOR (9-1/2-FOOT UNDERCARRIAGE)

1шт.

AT40252

HOSE

UPPER L.H. PROPEL MOTOR (8-FOOT UNDERCARRIAGE)

1шт.

5

AT40593

HOSE

LOWER L.H. PROPEL MOTOR (9-1/2-FOOT UNDERCARRIAGE)

1шт.

AT40253

HOSE

LOWER L.H. PROPEL MOTOR (8-FOOT UNDERCARRIAGE)

1шт.

6

AT38033

ELBOW FITTING

45°, (SUB FOR AR26722, THIS APPLICATION)

4шт.

7

T70177

O-RING

(SUB FOR R26448, THIS APPLICATION)

4шт.

8

R29867

FLANGE FITTING

SPLIT HALVES

8шт.

9

19H3104

CAP SCREW

7/16" X 1-1/4"

16шт.

10

N131838

O-RING

(SUB FOR U10289, THIS APPLICATION)

4шт.

11

AT35120

ELBOW FITTING

90°, (SUB FOR AR37017 AND AT32337)

2шт.

12

T34248

O-RING

(SUB FOR B3690R, THIS APPLICATION)

1шт.

13

AT40594

HOSE

UPPER R.H. PROPEL MOTOR (9-1/2-FOOT UNDERCARRIAGE)

1шт.

AT40250

HOSE

UPPER R.H. PROPEL MOTOR (8-FOOT UNDERCARRIAGE)

1шт.

14

AT40595

HOSE

LOWER R.H. PROPEL MOTOR (9-1/2-FOOT UNDERCARRIAGE)

1шт.

AT47152

HYDRAULIC HOSE - FABRICATE

LOWER R.H. PROPEL MOTOR (8-FOOT UNDERCARRIAGE) (SUB FOR AT40251, THIS APPLICATION) (ALSO ORDER (2) T47649 OR (2) X51H-24 AND (4) 19H3579)

1шт.

15

AT41775

CLAMP

2шт.
