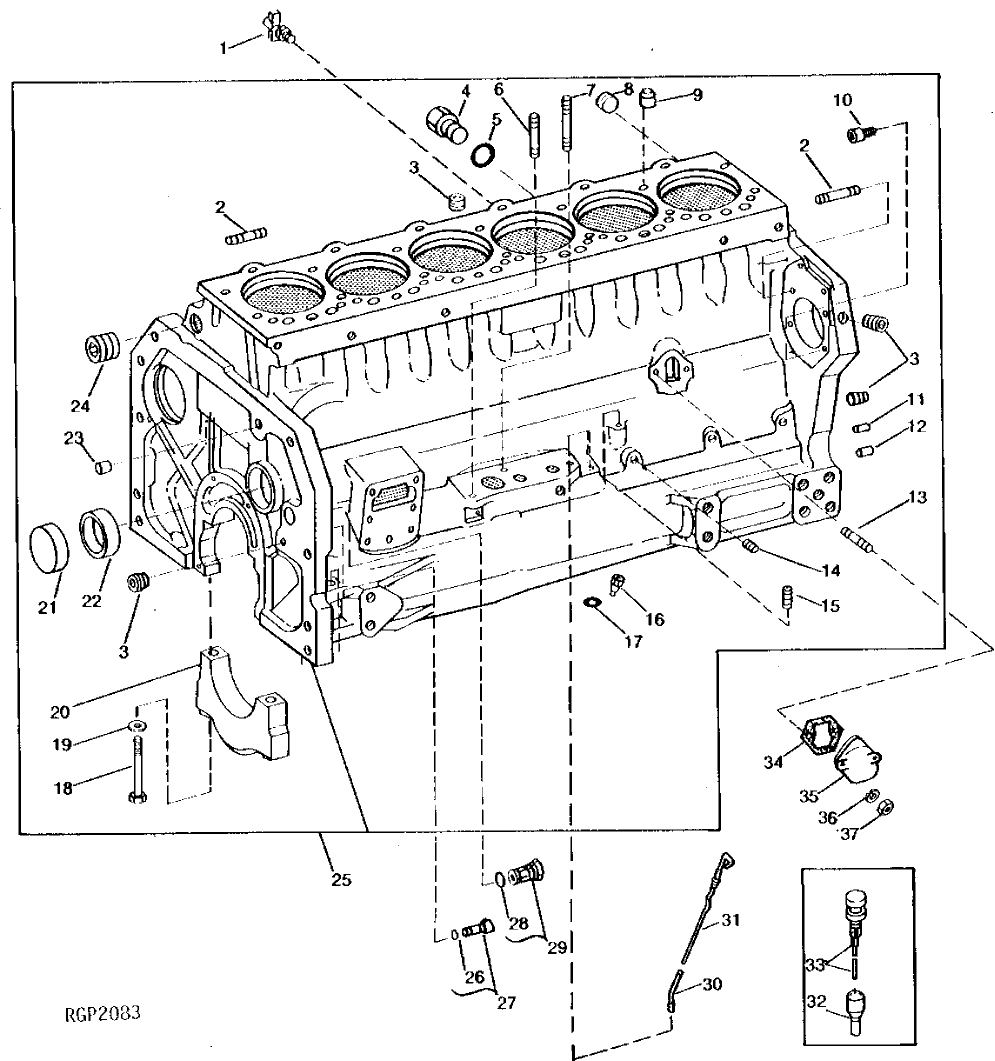

Запчасти John Deere 90B 4 - CYLINDER BLOCK, FITTINGS AND MAIN BEARING CAP 10 - ENGINE

1

AT13740

DRAIN VALVE

1шт.

2

R114130

STUD

(SUB FOR R55396, APPL.)

5шт.

3

RE57836

PIPE PLUG

(SUB FOR AR72319 OR 15H624)

5шт.

4

R39741

DRAIN PLUG

1шт.

5

U13639

O-RING

1шт.

6

R106859

STUD

(SUB FOR F3646R OR R26622, APPL)

1шт.

7

R55395

STUD

1шт.

8

15H690

PIPE PLUG

(SUB FOR AR72318)

2шт.

9

R42340

BUSHING

2шт.

10

22H776

SET SCREW

5/16" X 7/16", (SUB FOR R56545)

3шт.

11

R1612R

DOWEL PIN

2шт.

12

F1743R

DOWEL PIN

2шт.

13

R48755

STUD

2шт.

14

R104592

PIPE PLUG

(SUB FOR R21630, APPL)

5шт.

15

R104592

PIPE PLUG

1шт.

16

R43621

ORIFICE

6шт.

17

R71732

O-RING

1шт.

18

R42365

BOLT

(USE WITH R72128 OR R87558)

14шт.

19

R70268

WASHER

(SUB FOR R42363)

14шт.

20

R57158

BEARING CAP

(MAIN)

6шт.

R57159

BEARING CAP

(MAIN THRUST)

1шт.

21

R26115

PLUG

1шт.

22

R46903

BUSHING

4шт.

23

R61288

DOWEL PIN

1шт.

24

15H562

PIPE PLUG

1", (SUB FOR AR78522)

1шт.

25

AR94840

CYLINDER BLOCK

(A) (MARKED R72128)

1шт.

RE28308

CYLINDER BLOCK

(A) (MARKED R87558)

1шт.

26

A4365R

O-RING

1шт.

27

AR61589

PLUG

1шт.

28

R27149

O-RING

1шт.

29

AR61533

PLUG

1шт.

30

AR71850

DIPSTICK TUBE

1шт.

31

AR100478

DIPSTICK

1шт.

32

AR54557

TUBE

(SUB AR100478 AND AR71850)

1шт.

33

AR58986

DIPSTICK

(SUB AR100478 AND AR71850)

1шт.

34

R520618

GASKET

(SUB FOR R97350, R27285)

1шт.

35

R27286

COVER

1шт.

36

12H303

LOCK WASHER

5/16"

2шт.

37

14H785

NUT

5/16"

2шт.
