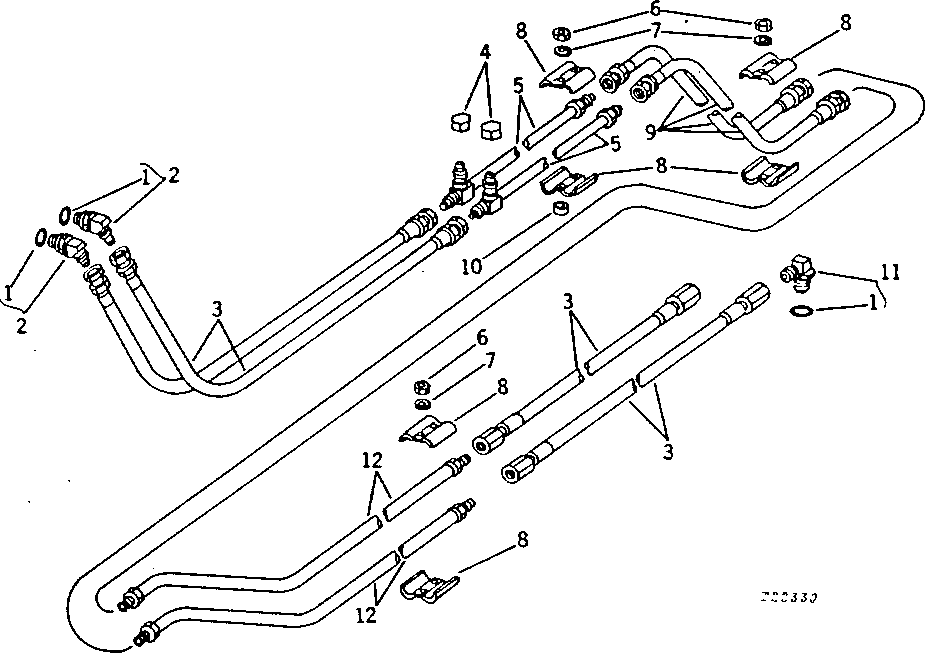

Запчасти John Deere 90B 4 - OIL LINES, VALVE TO BUCKET CYLINDER 60 - HYDRAULIC SYSTEM

1

R29936

O-RING

4шт.

2

AU43288

ELBOW FITTING

45°

2шт.

3

AT34207

HYDRAULIC HOSE - FABRICATE

1 118 MM LONG (1" X 44")

4шт.

4

U45826

FITTING

2шт.

5

AU43581

LINE

2шт.

6

H32811

LOCK NUT

(SUB FOR U14502)

8шт.

7

12H301

LOCK WASHER

1/2"

8шт.

8

T35868

CLAMP

8шт.

9

AU43293

HYDRAULIC HOSE - FABRICATE

1 448 MM LONG (1-5/16" X 57")

2шт.

10

Z24862

SPACER

(SUB FOR L1730N)

2шт.

11

X2503-16-16

ELBOW FITTING

(SUB FOR AU42832) 90° ADJUSTABLE

1шт.

12

AT34358

OIL LINE

2шт.
