Запчасти John Deere 90B 3 - FLOW DIVIDER VALVE 60 - HYDRAULIC SYSTEM

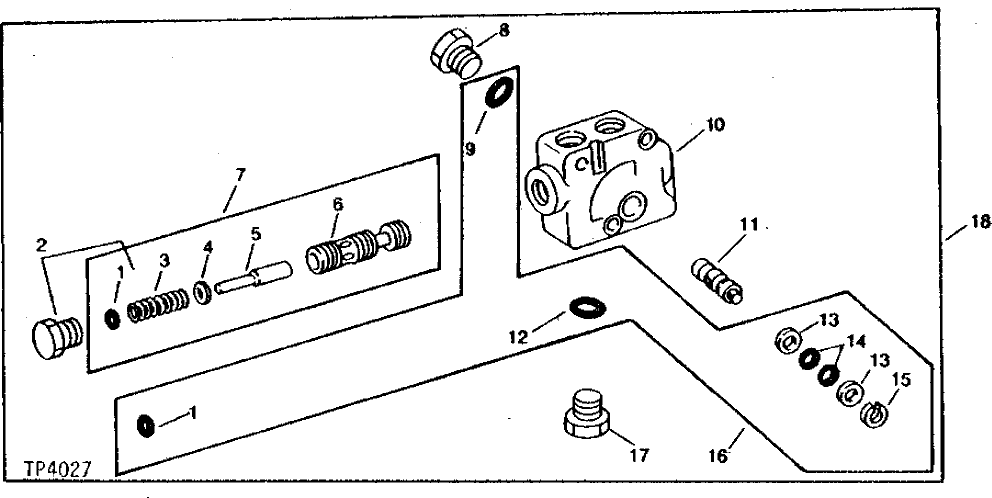

Схема запчастей John Deere 90B - 3 - FLOW DIVIDER VALVE 60 - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

U17409

O-RING

1шт.

2

AT38884

FITTING

1шт.

3

SPRING

(SUB AT36556)

1шт.

4

R49549

WASHER

1шт.

5

PIN FASTENER

(SUB AT36556)

1шт.

6

SPOOL

(SUB AT36556)

1шт.

7

AT36556

KIT

FLOW DIVIDER PISTON REPLACEMENT

1шт.

8

T72740

FITTING

1шт.

9

R26375

O-RING

1шт.

10

HOUSING

(A) (ALSO ORDER T55425 SPOOL) (SUB AT69860)

1шт.

HOUSING

(SUB AT69860)

1шт.

HOUSING

(SUB AT69860)

1шт.

11

SPOOL

(A) (SUB TWO T55425 SPOOLS)

1шт.

T55425

VALVE SPOOL

1шт.

T72739

HYD ACTUATED CONTROL VALVE

1шт.

12

R26375

O-RING

1шт.

13

H35230

BACK-UP RING

2шт.

14

T13119

O-RING

2шт.

15

T38546

SNAP RING

1шт.

16

AT36557

SEAL KIT

FLOW DIVIDER SEAL REPLACEMENT

1шт.

17

R39112

FITTING

1шт.

18

AT34521

VALVE

(A) (ALSO ORDER T55425 SPOOL) (SUB AT69860)

2шт.

AT53246

VALVE

(SUB AT69860)

2шт.

AT69860

HYD ACTUATED CONTROL VALVE

2шт.

Выбрано товаров: 24
