Запчасти John Deere 90B 2 - FLOW DIVIDER, BRACKET, AND OIL LINE 60 - HYDRAULIC SYSTEM

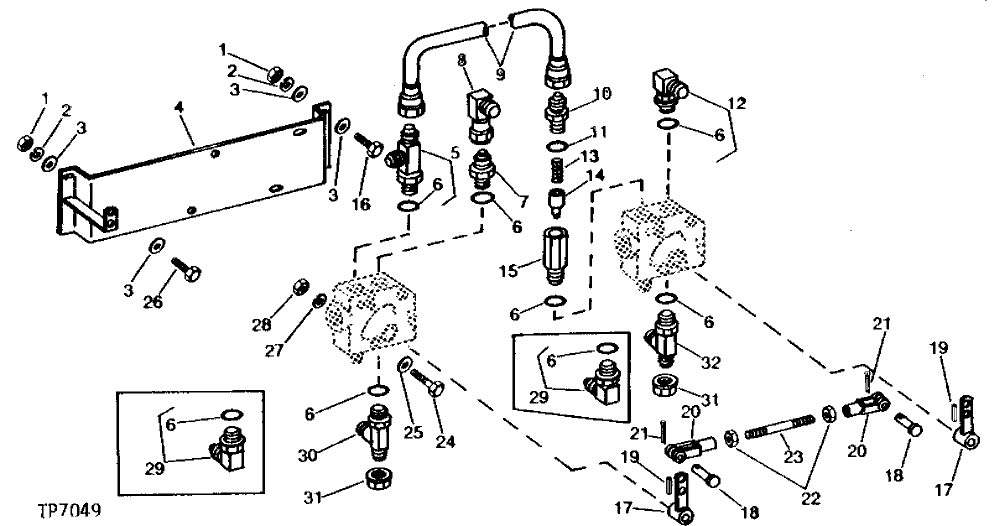

Схема запчастей John Deere 90B - 2 - FLOW DIVIDER, BRACKET, AND OIL LINE 60 - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

14H1040

NUT

1/2", (SUB FOR 14H809)

3шт.

2

12H301

LOCK WASHER

1/2"

3шт.

3

24H1254

WASHER

17/32" X 1-1/8" X 0.105"

6шт.

4

AT34520

BRACKET

1шт.

5

X20R5OX-S

TEE FITTING

(SUB FOR AT31891)

1шт.

6

R29936

O-RING

6шт.

7

T26767

FITTING

(SUB FOR AU43250)

1шт.

8

AT33917

ELBOW FITTING

SWIVEL 90°, (SUB FOR AR29422)

1шт.

9

AT34467

LINE

1шт.

10

T34433

ADAPTER FITTING

(SUB FOR AT34770 AND T50129) (ALSO ORDER U12547)

1шт.

11

U12547

O-RING

(SUB FOR F3171R)

1шт.

12

X2503-16-16

ELBOW FITTING

(SUB FOR AU42832) 90° ADJUSTABLE

1шт.

13

T26072

SPRING

1шт.

14

T35780

CHECK VALVE

1шт.

15

T35781

FITTING

1шт.

16

19H2993

CAP SCREW

1/2" X 1-1/2"

2шт.

17

AT34524

HANDLE

2шт.

18

L4667T

PIN FASTENER

(SUB R662R AND 11M7082)

2шт.

R662R

PIN FASTENER

1шт.

19

34H312

SPRING PIN

1/4" X 1"

2шт.

20

M3742T

YOKE

2шт.

21

11M7077

COTTER PIN

1.600 X 25 MM, (USE WITH L4667T)

2шт.

11H234

COTTER PIN

3/32" X 1", (USE WITH R662R)

2шт.

22

14H649

NUT

1/4"

2шт.

23

T35554

STUD

1шт.

24

19H2855

CAP SCREW

3/8" X 3-1/4"

4шт.

25

24H1308

WASHER

13/32" X 1" X 0.134"

2шт.

26

19H2469

CAP SCREW

1/2" X 2-1/4"

1шт.

27

12H304

LOCK WASHER

3/8"

4шт.

28

14H812

NUT

3/8"

4шт.

29

X2503-16-16

ELBOW FITTING

(SUB FOR AU42832) 90° ADJUSTABLE

2шт.

30

X20R5OX-S

TEE FITTING

(SUB FOR AT31891) (WITHOUT PILOT CONTROL)

1шт.

AT71080

FITTING

(WITH PILOT CONTROL)

1шт.

31

U45826

FITTING

2шт.

32

X20R5OX-S

TEE FITTING

(SUB FOR AT31891)

1шт.

Выбрано товаров: 35
