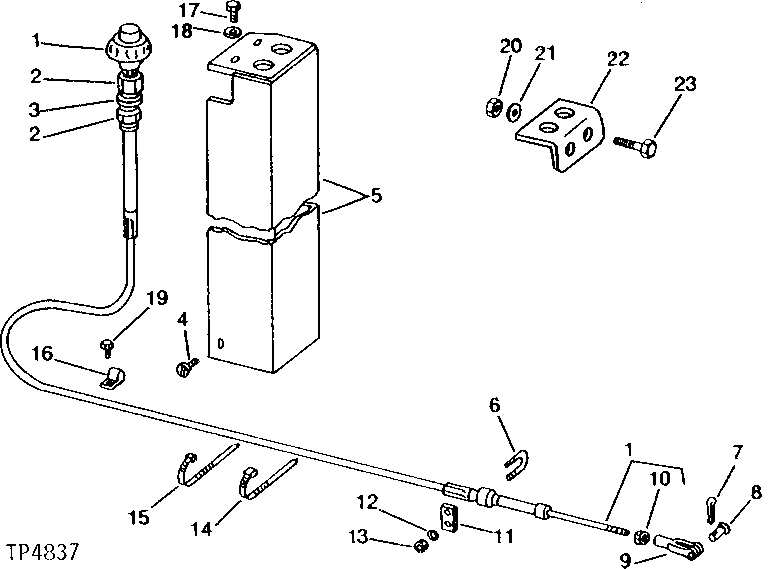

Запчасти John Deere 90B 1 - FLOW CONTROL CABLE AND CONTROL PANEL 60 - HYDRAULIC SYSTEM

1

AT41410

PUSH PULL CABLE

1шт.

2

14H904

NUT

3/4"

2шт.

3

12H327

LOCK WASHER

INTERNAL-TOOTH, 3/4"

1шт.

4

37H20

SCREW

NO. 8 X 3/8" (WITHOUT PILOT CONTROLS)

3шт.

5

AT34529

PANEL

(WITHOUT PILOT CONTROLS)

1шт.

6

T13988

U-BOLT

1шт.

7

11M7077

COTTER PIN

1.600 X 25 MM, (USE WITH L4667T)

1шт.

11M7082

COTTER PIN

2.500 X 25 MM, (USE WITH R662R)

1шт.

8

L4667T

PIN FASTENER

(SUB R662R AND 11H234)

1шт.

R662R

PIN FASTENER

1шт.

9

M3742T

YOKE

1шт.

10

14H649

NUT

1/4"

1шт.

11

T15021

STRAP

1шт.

12

12H302

LOCK WASHER

1/4"

2шт.

13

14H786

NUT

1/4"

2шт.

14

H77698

TIE BAND

(SUB FOR AT30417 AND T44946)

1шт.

15

R44302

TIE BAND

2шт.

16

T21101

CLAMP

1шт.

17

37H95

SCREW

(SUB FOR 37H47) DRIVE, NO. 8 X 1/2" (WITHOUT PILOT CONTROLS)

2шт.

18

24H1283

WASHER

7/32" X 1/2" X 0.049", (WITHOUT PILOT CONTROLS)

2шт.

19

19H2127

CAP SCREW

5/16" X 7/8"

1шт.

20

M63707

LOCK NUT

(SUB FOR (2) P43893) (WITH PILOT CONTROLS)

2шт.

21

24H1821

WASHER

9/32" X 47/64" X 1/16", (WITH PILOT CONTROLS)

2шт.

22

T71894

ANGLE

(WITH PILOT CONTROLS)

1шт.

23

19H1948

CAP SCREW

1/4" X 3/4", (WITH PILOT CONTROLS)

2шт.
