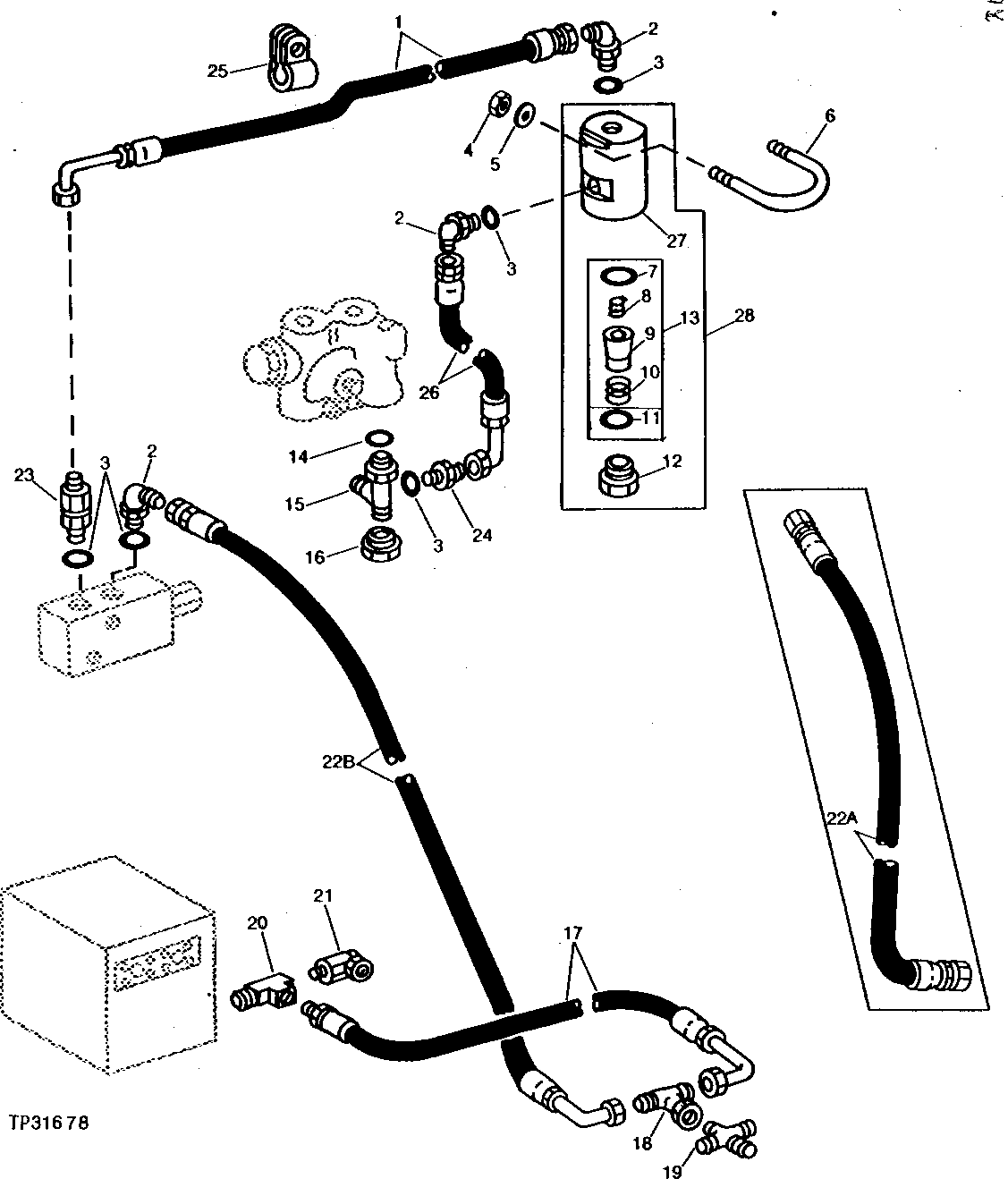

Запчасти John Deere 90B 30 - PILOT CONTROL OIL FILTER HYDRAULICS 55 - OPERATING CONTROL LEVERS AND LINKAGE

1

AT68899

HYDRAULIC HOSE - FABRICATE

1шт.

2

AT35121

ELBOW FITTING

3шт.

3

T70177

O-RING

5шт.

4

14H786

NUT

1/4"

2шт.

5

24H1821

WASHER

9/32" X 47/64" X 1/16"

2шт.

6

R60124

U-BOLT

1шт.

7

O-RING

(SUB AT105419)

1шт.

8

SPRING

(SUB AT105419)

1шт.

9

FILTER

(SUB AT105419)

1шт.

10

SPRING

(SUB AT105419)

1шт.

11

R29936

O-RING

1шт.

12

T114718

FITTING PLUG

1шт.

13

AT105419

KIT

(SUB FOR AT74161) (ALSO ORDER T65954)

1шт.

14

R29936

O-RING

1шт.

15

AT71080

FITTING

1шт.

16

U45826

FITTING

1шт.

17

AT71572

HYDRAULIC HOSE - FABRICATE

(SUB FOR AT68902)

1шт.

18

AT54268

TEE FITTING

1шт.

19

T72256

UNION FITTING

1шт.

20

U10255

TEE FITTING

1шт.

21

AT34204

UNION FITTING

1шт.

22A

AT68903

HYDRAULIC HOSE

1 549 MM LONG (9/16" X 3/4" X 61") (SUB AT71573)

1шт.

22B

AT71573

HYDRAULIC HOSE - FABRICATE

1шт.

23

AT69857

CHECK VALVE

1шт.

24

R27212

FITTING

1шт.

25

R72659

CLAMP

(SUB FOR AH83545)

1шт.

26

AT69351

HYDRAULIC HOSE - FABRICATE

1шт.

27

HOUSING

(SUB AT115276)

1шт.

28

AT115276

HYDRAULIC FILTER

(SUB FOR AT71081)

1шт.
