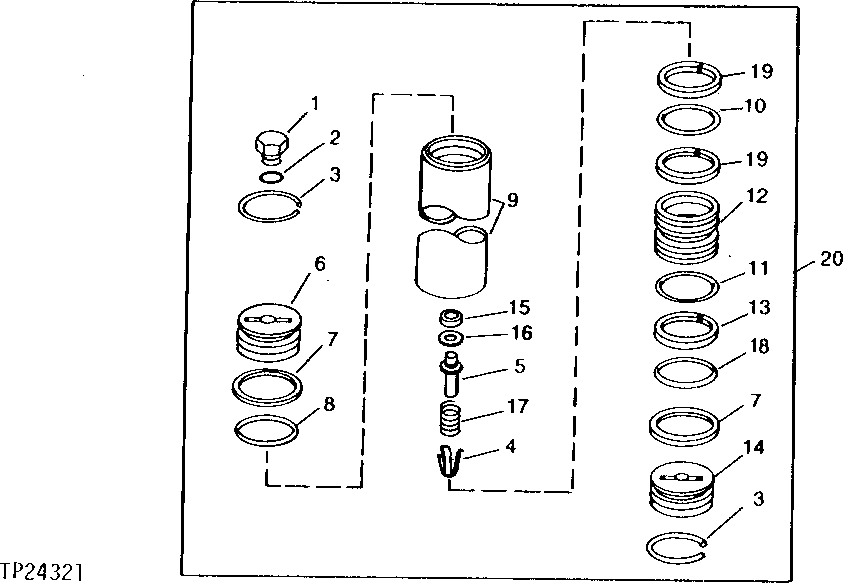

Запчасти John Deere 90B 25A - REPLACEMENT HYDRAULIC OIL ACCUMULATOR 55 - OPERATING CONTROL LEVERS AND LINKAGE

1

R27094

DRAIN PLUG

1шт.

2

R26286

O-RING

1шт.

3

R78101

SNAP RING

2шт.

4

R41877

GUIDE

1шт.

5

R47085

VALVE

1шт.

6

R48957

END

1шт.

7

R78823

BACK-UP RING

2шт.

8

R86192

O-RING

(SUB FOR U12331) (GAS END)

1шт.

9

R77866

HYDRAULIC CYLINDER BARREL

1шт.

10

R86874

SEAL

(SUB FOR RE26567) (ALSO ORDER (2) R86873)

1шт.

11

R76745

O-RING

1шт.

12

R57103

PISTON

1шт.

13

R27649

BACK-UP RING

1шт.

14

R44426

CAP

1шт.

15

R60038

PACKING

1шт.

16

R47087

WASHER

1шт.

17

R47086

SPRING

1шт.

18

R86192

O-RING

(SUB FOR U12331)

1шт.

19

R86873

PISTON RING

2шт.

20

RE29331

HYDRAULIC ACCUMULATOR

(ALSO ORDER R80752 ENGLISH LABEL, R80753 SPANISH LABEL, R80754 FRENCH LABEL AND R82337 GERMAN LABEL AS REQUIRED)

1шт.
