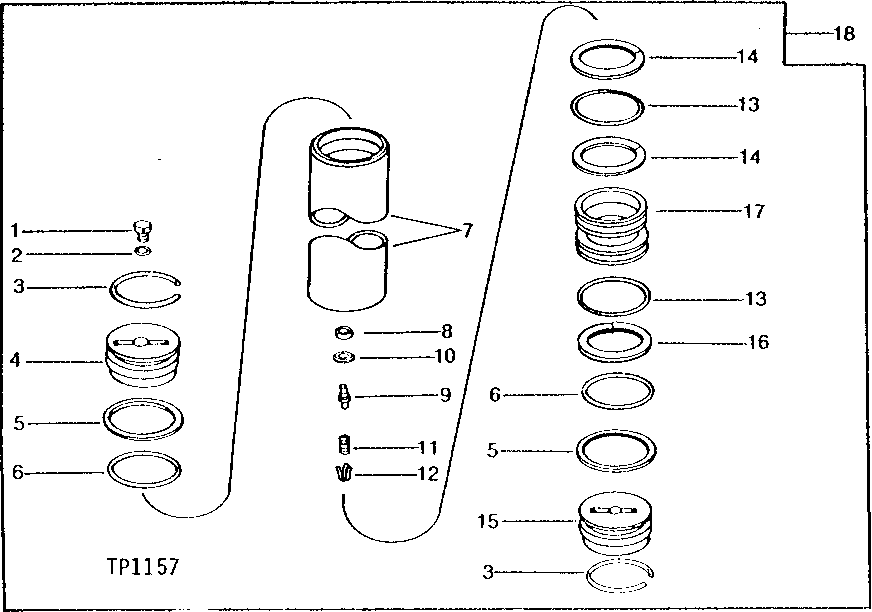

Запчасти John Deere 90B 25 - HYDRAULIC ACCUMULATOR 55 - OPERATING CONTROL LEVERS AND LINKAGE

1

R27094

DRAIN PLUG

1шт.

2

R26286

O-RING

1шт.

3

U10136

SNAP RING

(USE WITH AR46054)

2шт.

R78101

SNAP RING

(USE WITH RE11966)

2шт.

4

R48957

END

1шт.

5

R78823

BACK-UP RING

(SUB FOR R35684, THIS APPLICATION)

2шт.

6

R86192

O-RING

(SUB FOR U12331)

2шт.

7

ACCUMULATOR

(SUB R77866) (ALSO ORDER (2) R78101) (USE WITH AR46054)

1шт.

R77866

HYDRAULIC CYLINDER BARREL

(USE WITH RE11966)

1шт.

8

R60038

PACKING

1шт.

9

R47085

VALVE

1шт.

10

R47087

WASHER

1шт.

11

R47086

SPRING

1шт.

12

R41877

GUIDE

1шт.

13

A4728R

O-RING

2шт.

14

L29015

BACK-UP RING

2шт.

15

R47912

CAP

1шт.

16

R27649

BACK-UP RING

1шт.

17

R57103

PISTON

1шт.

18

AR46054

ACCUMULATOR

1шт.

RE11966

ACCUMULATOR

(SUB RE29331) (ALSO ORDER R80752 ENGLISH LABEL, R80753 SPANISH LABEL, R80754 FRENCH LABEL AND R82337 GERMAN LABEL AS REQUIRED)

1шт.
