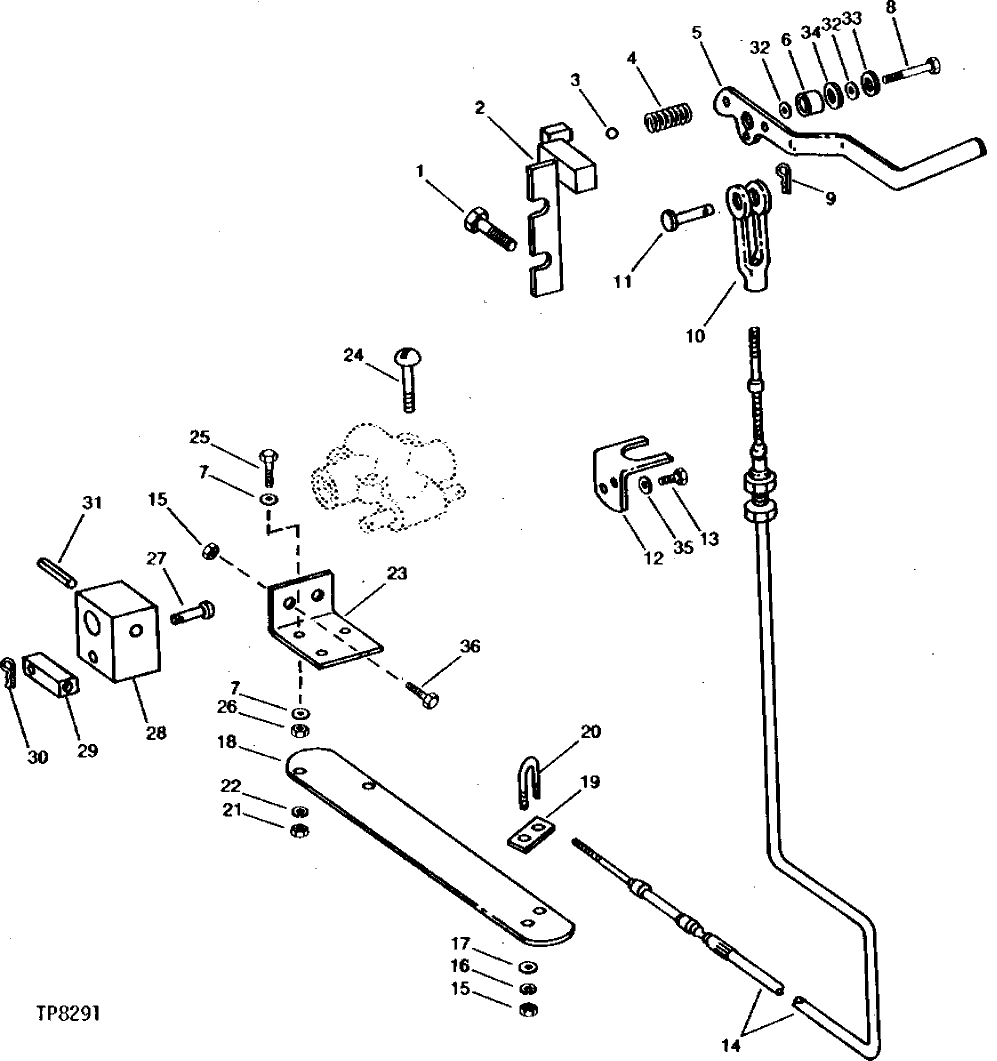

Запчасти John Deere 90B 22 - PILOT CONTROL MANUAL SHUT-OFF 55 - OPERATING CONTROL LEVERS AND LINKAGE

1

T22728

SCREW

2шт.

2

AT69828

BRACKET

1шт.

3

400R

BALL

(SUB FOR T39666)

1шт.

4

T44090

SPRING

1шт.

5

T72660

LEVER

1шт.

T75189

LEVER

1шт.

6

U13177

BUSHING

(SUB T75190)

1шт.

T75190

SPACER

1шт.

7

24H1305

WASHER

13/32" X 13/16" X 0.065"

4шт.

8

19H3239

CAP SCREW

3/8" X 1-1/4"

1шт.

9

11M7079

COTTER PIN

2.500 X 12 MM

1шт.

10

T184870

YOKE

(SUB FOR T38708)

1шт.

11

H858R

PIN FASTENER

1шт.

12

T71862

CLAMP

(SUB T75191, T75188, (2) 24H1821 AND (2) 19H1948)

1шт.

T75191

ANGLE

1шт.

13

37H137

SCREW

0.190" X 5/8"

2шт.

19H1948

CAP SCREW

1/4" X 3/4"

2шт.

14

AT107238

CABLE

(SUB FOR AT69360 ALONG WITH T107033)

1шт.

15

14H786

NUT

1/4"

4шт.

16

12H302

LOCK WASHER

1/4"

2шт.

17

24H1287

WASHER

9/32" X 5/8" X 0.065"

2шт.

18

T71876

BRACKET

1шт.

19

T15021

STRAP

1шт.

20

T13988

U-BOLT

1шт.

21

14H778

NUT

0.190"

3шт.

22

12H246

LOCK WASHER

0.190"

3шт.

23

T71873

ANGLE

1шт.

24

21H1274

SCREW

0.190" X 2-1/2"

3шт.

25

19H3483

CAP SCREW

3/8" X 1-1/8"

2шт.

26

14H812

NUT

3/8"

2шт.

27

T48111

PIN FASTENER

1шт.

28

T71874

BELLCRANK

1шт.

29

T71875

YOKE

1шт.

30

11M7082

COTTER PIN

2.500 X 25 MM

1шт.

31

34H327

SPRING PIN

5/16" X 1"

1шт.

32

T35704

SHIM

ARшт.

33

24H1308

WASHER

13/32" X 1" X 0.134"

1шт.

34

M49960

WASHER

1шт.

35

24H1646

WASHER

17/64" X 3/4" X 0.060"

2шт.

36

19H1948

CAP SCREW

1/4" X 3/4"

2шт.
