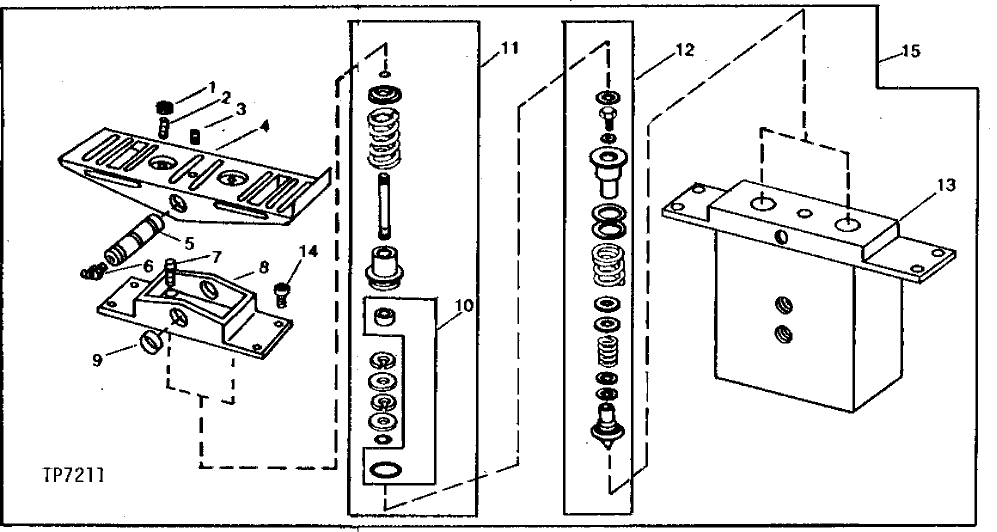

Запчасти John Deere 90B 18 - PILOT CONTROL FOOT PEDAL CONTROLLER 55 - OPERATING CONTROL LEVERS AND LINKAGE

1

14M7203

NUT

M8

2шт.

2

SCREW

(SUB AT130071)

2шт.

P46051

O-RING

2шт.

3

T77078

SET SCREW

2шт.

4

T166542

PEDAL

(SUB FOR AT68913)

1шт.

5

T77079

PIN FASTENER

1шт.

6

58M5632

LUBRICATION FITTING

1шт.

7

T77077

SET SCREW

4шт.

8

SUPPORT

(SUB AT130071)

1шт.

9

BUSHING

(SUB AT130071)

2шт.

10

AT68909

SEAL KIT

1шт.

11

AT68912

SPRING ASSEMBLY

2шт.

12

AT68910

SPRING ASSEMBLY

(USE IF AVAILABLE) (SUB AT130071)

2шт.

13

HOUSING

(SUB AT130071)

1шт.

14

R63063

SCREW

4шт.

15

VALVE

( AT68911 NO LONGER AVAILABLE) (SUB AT130071)

2шт.

AT130071

HAND OPERATED VALVE

REPLACEMENT

1шт.
