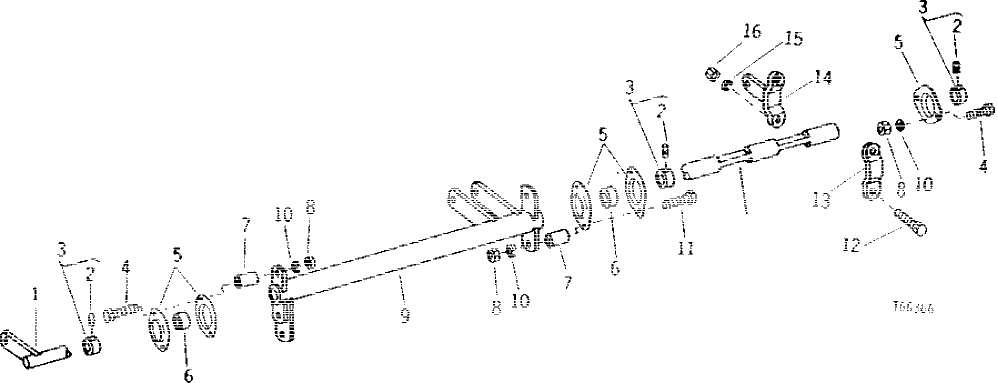

Запчасти John Deere 90B 8 - CROWD AND BOOM PIVOT ROD 55 - OPERATING CONTROL LEVERS AND LINKAGE

1

AT54698

ROD

1шт.

2

E18630

SET SCREW

4шт.

3

JD8554

ECCENTRIC LOCKING COLLAR

4шт.

4

03H1790

BOLT

5/16" X 1-1/2"

8шт.

5

L2287C

PRESSED FLANGED HOUSING

6шт.

6

JD8555

BALL BEARING

4шт.

7

28H1514

SPACER

PIPE, 1/4" X 9/16"

4шт.

8

14H785

NUT

5/16"

8шт.

9

AT54699

PIPE

1шт.

10

12H303

LOCK WASHER

5/16"

8шт.

11

03H1937

BOLT

5/16" X 1-1/4"

8шт.

12

19H2633

CAP SCREW

3/8" X 1-1/2"

2шт.

13

U45928

BELLCRANK

HALF

1шт.

14

U45935

BELLCRANK

LINK HALF

1шт.

15

12H304

LOCK WASHER

3/8"

2шт.

16

14H812

NUT

3/8"

2шт.
