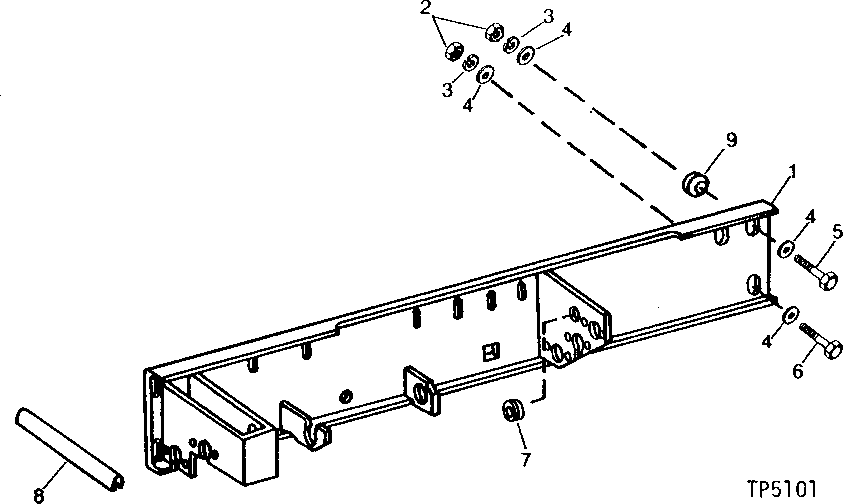

Запчасти John Deere 90B 5 - BEARING BRACKET 55 - OPERATING CONTROL LEVERS AND LINKAGE

1

AT54694

BRACKET

(WITHOUT PILOT CONTROLS)

1шт.

2

14H1040

NUT

1/2", (SUB FOR 14H809) (WITHOUT PILOT CONTROLS)

11шт.

14H1040

NUT

1/2", (SUB FOR 14H809) (WITH PILOT CONTROLS)

4шт.

3

12H301

LOCK WASHER

1/2", (WITHOUT PILOT CONTROLS)

11шт.

12H301

LOCK WASHER

1/2", (WITH PILOT CONTROLS)

4шт.

4

24H1254

WASHER

17/32" X 1-1/8" X 0.105", (WITHOUT PILOT CONTROLS)

20шт.

24H1254

WASHER

17/32" X 1-1/8" X 0.105", (WITH PILOT CONTROLS)

6шт.

5

19H2993

CAP SCREW

1/2" X 1-1/2", (WITHOUT PILOT CONTROLS)

10шт.

19H2898

CAP SCREW

1/2" X 1-1/4", (WITH PILOT CONTROLS)

3шт.

6

19H2469

CAP SCREW

1/2" X 2-1/4", (WITHOUT PILOT CONTROLS)

1шт.

19H2735

CAP SCREW

1/2" X 2", (WITH PILOT CONTROLS)

1шт.

7

M1916T

GROMMET

(WITHOUT PILOT CONTROLS)

1шт.

8

MOLDING

(MAKE FROM T58056, 15 M (50' BULK) (SUB FOR T61798, THIS APPLICATION)

ARшт.

9

T16387

WASHER

(WITH PILOT CONTROLS)

2шт.
