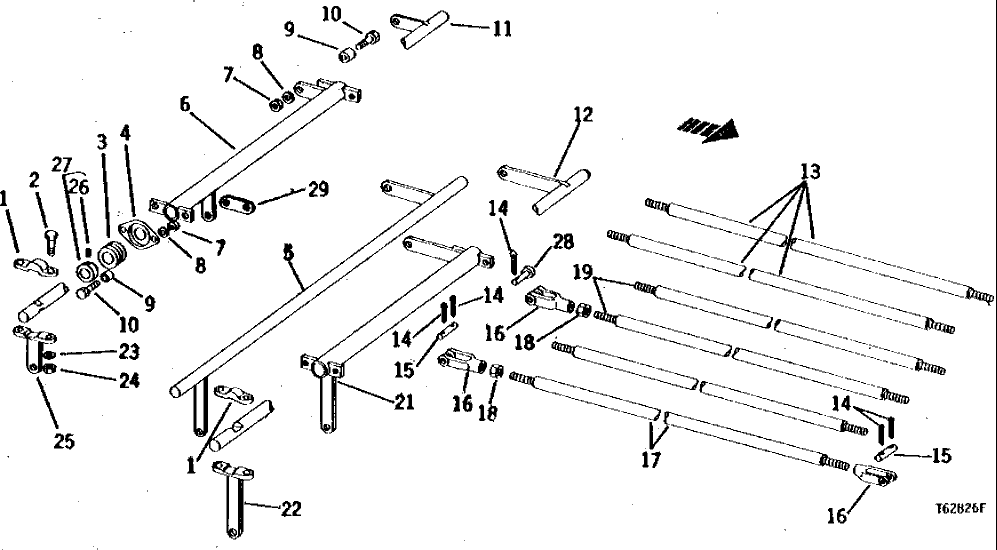

Запчасти John Deere 90B 4 - CONTROL VALVE LINKAGE 55 - OPERATING CONTROL LEVERS AND LINKAGE

1

U45928

BELLCRANK

HALF

1шт.

2

19H2633

CAP SCREW

3/8" X 1-1/2"

2шт.

3

JD8555

BALL BEARING

8шт.

4

L2287C

PRESSED FLANGED HOUSING

16шт.

5

AT54702

ROD

PIVOT (BUCKET) (SUB FOR AU43626) (ALSO ORDER (2) U45935, (2) U45928, (4) 12H304, (4) 14H812, (4) 19H2633)

1шт.

6

AU43621

PIPE

PIVOT, L.H. TRAVEL

1шт.

7

14H785

NUT

5/16"

8шт.

8

12H303

LOCK WASHER

5/16"

8шт.

9

28H1514

SPACER

PIPE, 1/4" X 9/16"

8шт.

10

03H1790

BOLT

5/16" X 1-1/2"

8шт.

11

AU43622

ROD

1шт.

12

AT54698

ROD

(CROWD) (SUB FOR AT35058)

1шт.

13

T33862

PUSH ROD

(SWING AND L.H. TRAVEL)

1шт.

14

11M7015

COTTER PIN

3.200 X 25 MM

23шт.

15

U46245

PIN FASTENER

11шт.

16

U16202

YOKE

12шт.

17

T33861

PUSH ROD

(R.H. TRAVEL)

1шт.

18

14H826

NUT

1/2"

12шт.

19

T66608

PUSH ROD

(CROWD AND BOOM) (SUB FOR T33863, THIS APPLICATION)

1шт.

20

T33864

ROD

(BUCKET)

1шт.

21

AU43624

PIPE

(BOOM)

1шт.

22

U45935

BELLCRANK

LINK HALF

1шт.

23

12H304

LOCK WASHER

3/8"

2шт.

24

14H812

NUT

3/8"

2шт.

25

U45929

LINK

LINK HALF

1шт.

26

E18630

SET SCREW

1шт.

27

JD8554

ECCENTRIC LOCKING COLLAR

8шт.

28

T10187

PIN FASTENER

1шт.

29

T56824

STRAP

BUCKET LINK, (SUB FOR AT54707)

2шт.
