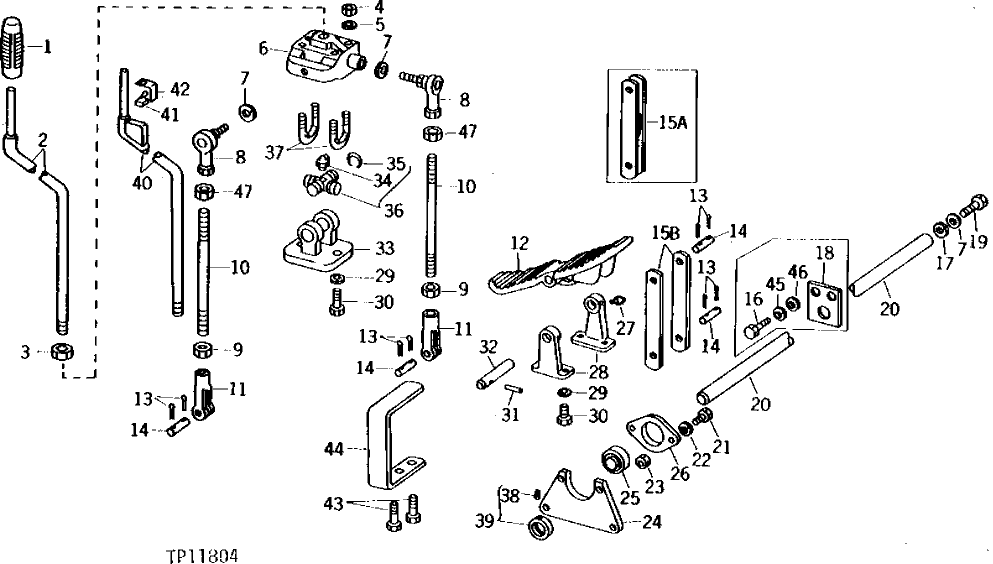

Запчасти John Deere 90B 2 - OPERATING CONTROL LEVERS AND PEDALS 55 - OPERATING CONTROL LEVERS AND LINKAGE

1

U43703

GRIP

2шт.

2

U45618

LEVER

1шт.

3

14H794

NUT

3/4"

2шт.

4

14H860

NUT

1/4"

8шт.

5

12H302

LOCK WASHER

1/4"

8шт.

6

U46256

PIVOT

2шт.

7

12H301

LOCK WASHER

1/2"

6шт.

8

AU43742

BALL JOINT

4шт.

9

14H826

NUT

1/2"

4шт.

10

U46251

STUD

4шт.

11

U16202

YOKE

4шт.

12

T35284

PEDAL

2шт.

13

11M7015

COTTER PIN

3.200 X 25 MM

16шт.

14

U46245

PIN FASTENER

8шт.

15A

AU43739

LINK

(SUB (2) T61265)

2шт.

15B

T61265

LINK

4шт.

16

19H2898

CAP SCREW

1/2" X 1-1/4"

2шт.

17

24H1788

WASHER

17/32" X 1-1/8" X 0.060"

4шт.

18

U46379

SUPPORT

1шт.

19

19H2880

CAP SCREW

1/2" X 1-3/4"

2шт.

20

U45628

PIN

1шт.

21

03H1709

BOLT

5/16" X 1"

12шт.

22

12H303

LOCK WASHER

5/16"

12шт.

23

14H785

NUT

5/16"

12шт.

24

U46252

LINK

6шт.

25

JD8555

BALL BEARING

6шт.

26

L2287C

PRESSED FLANGED HOUSING

12шт.

27

JD7806

LUBRICATION FITTING

2шт.

28

U45634

SUPPORT

4шт.

29

12H304

LOCK WASHER

3/8"

12шт.

30

19H1648

CAP SCREW

3/8" X 3/4"

12шт.

31

34H284

SPRING PIN

3/16" X 1-1/4"

2шт.

32

U45633

PIN FASTENER

2шт.

33

U46255

BASE

2шт.

34

JD7763

LUBRICATION FITTING

45°, 1/8"

2шт.

35

BP13669

SNAP RING

8шт.

36

AE23716

CROSS AND BEARING ASSEMBLY

2шт.

37

AU43783

BOLT

(SUB T66665)

4шт.

T66665

U-BOLT

4шт.

38

E18630

SET SCREW

1шт.

39

JD8554

ECCENTRIC LOCKING COLLAR

6шт.

40

AT41794

LEVER

CONTROL, LEFT

1шт.

41

AT41793

TOGGLE SWITCH

(OPERATES THE HOUSE LOCK)

1шт.

42

T42972

ANGLE

1шт.

43

T45159

BRACKET

TRAVEL PEDAL

1шт.

44

19H1815

CAP SCREW

1/2" X 1-1/4"

4шт.

45

12H301

LOCK WASHER

1/2"

2шт.

46

24H1788

WASHER

17/32" X 1-1/8" X 0.060"

2шт.

47

14H856

NUT

1/2"

4шт.
