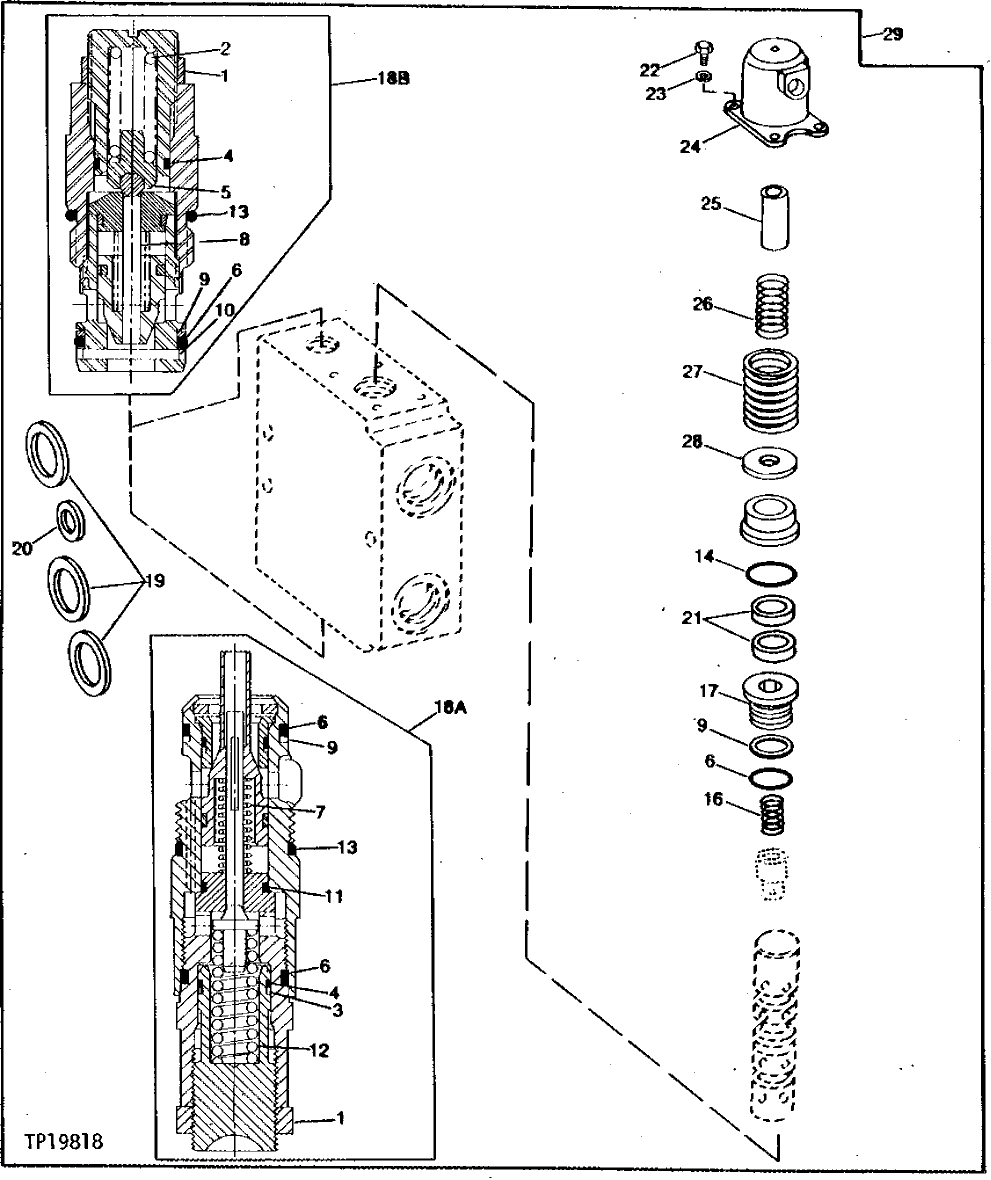

Запчасти John Deere 90B 46 - REPLACEMENT ARM AND BUCKET VALVE 50 - HYDRAULIC PUMP AND CONTROL VALVE

1

LOCK NUT

( T81250 NO LONGER AVAILABLE)

2шт.

2

SPRING

2шт.

3

T81247

BACK-UP RING

2шт.

4

H63283

O-RING

2шт.

5

POPPET

(SUB AT112534)

2шт.

6

U45857

O-RING

5шт.

7

SPRING

( T81248 NO LONGER AVAILABLE)

2шт.

8

PIN FASTENER

(SUB AT112534)

2шт.

9

U45858

BACK-UP RING

3шт.

10

34H233

SPRING PIN

3/32" X 7/8"

2шт.

11

R45186

O-RING

2шт.

12

SPRING

( T81249 NO LONGER AVAILABLE)

2шт.

13

P47908

O-RING

2шт.

14

U46335

O-RING

2шт.

15

T71901

PLATE

2шт.

16

U45851

SPRING

2шт.

17

T114585

BOLT

(SUB FOR T71898)

2шт.

18A

AT82530

RELIEF VALVE

(SUB AT112534) (3000 PSI)

2шт.

18B

AT112534

PRESSURE RELIEF VALVE

(3000 PSI)

2шт.

19

U45843

WASHER

3шт.

20

U45844

WASHER

1шт.

21

U45855

WASHER

4шт.

22

19H3554

SCREW

1/4" X 0.880"

8шт.

23

12H302

LOCK WASHER

1/4"

8шт.

24

T71899

END

2шт.

25

T71897

SLEEVE

2шт.

26

T71896

SPRING

2шт.

27

T71895

SPRING

2шт.

28

T71900

PLATE

2шт.

29

VALVE

(SUB FOR AT82531 AND AT83238) ( AT114813 NO LONGER AVAILABLE)

2шт.
