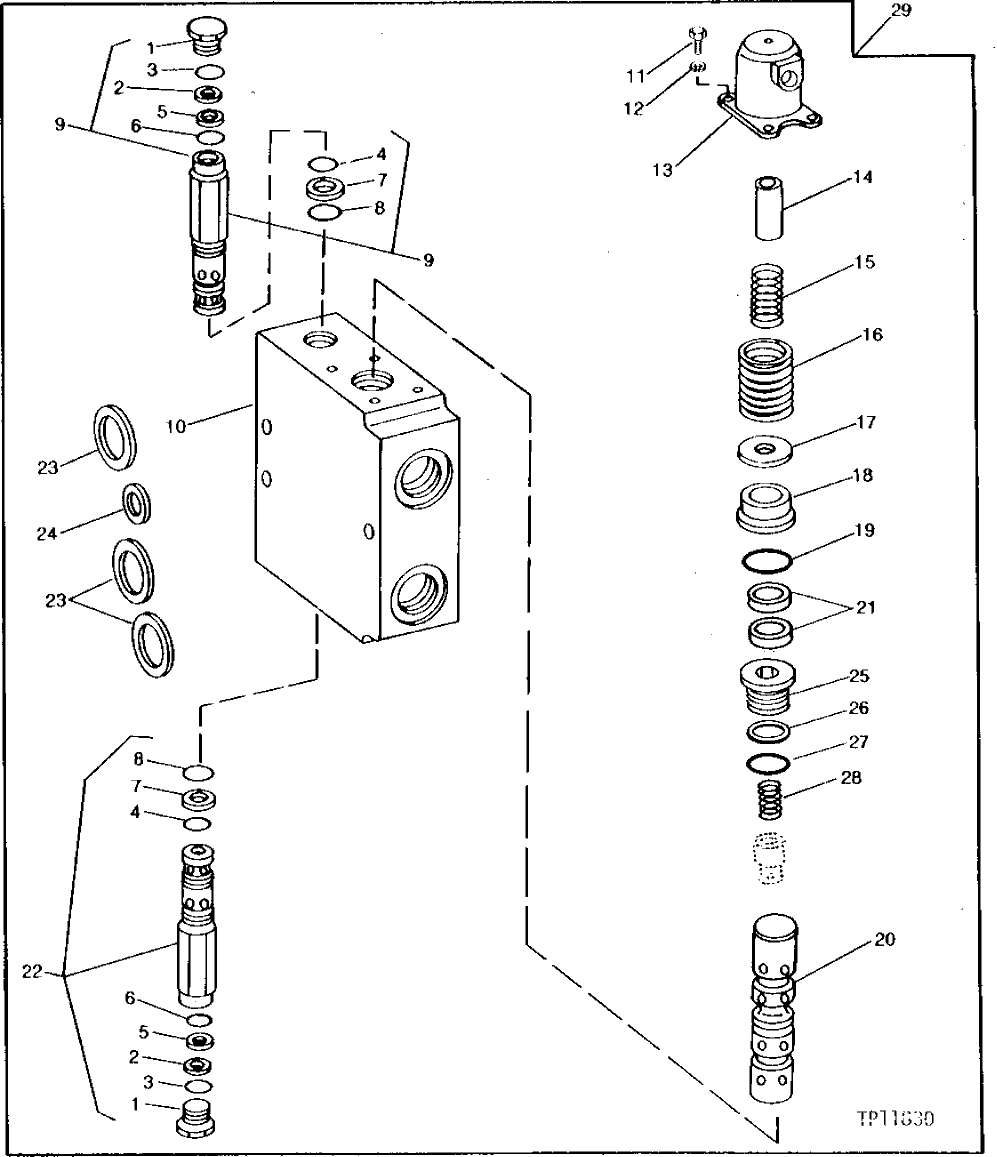

Запчасти John Deere 90B 34 - BOOM VALVE 50 - HYDRAULIC PUMP AND CONTROL VALVE

1

PLUG

(SUB AT33484 OR AU43596)

1шт.

2

SHIM

(A) 0.13 MM (.005") ( T31124 NO LONGER AVAILABLE)

ARшт.

SHIM

(A) 0.16 MM (.006") ( T31125 NO LONGER AVAILABLE)

ARшт.

SHIM

(A) 0.18 MM (.007") ( T31126 NO LONGER AVAILABLE)

ARшт.

SHIM

(A) 0.20 MM (.008") ( T31127 NO LONGER AVAILABLE)

ARшт.

SHIM

(A) 0.23 MM (.009") ( T31128 NO LONGER AVAILABLE)

ARшт.

3

P48347

O-RING

2шт.

4

P47908

O-RING

2шт.

5

R32588

BACK-UP RING

2шт.

6

32246

O-RING

2шт.

7

U45858

BACK-UP RING

4шт.

8

U45857

O-RING

2шт.

9

AT33484

PRESSURE RELIEF VALVE

25 856 KPA (258 BAR) (3 750 PSI)

1шт.

10

HOUSING

(SUB AT68931)

1шт.

11

19H3554

SCREW

1/4" X 0.880"

8шт.

12

12H302

LOCK WASHER

1/4"

8шт.

13

T71899

END

2шт.

14

T71897

SLEEVE

2шт.

15

T71896

SPRING

2шт.

16

T71895

SPRING

2шт.

17

T71900

PLATE

2шт.

18

T71901

PLATE

2шт.

19

U46335

O-RING

(SUB FOR T71902)

2шт.

20

SPOOL

(SUB AT68931)

1шт.

21

U45855

WASHER

4шт.

22

AU43596

PRESSURE RELIEF VALVE

20 685 KPA (207 BAR) (3 000 PSI)

1шт.

23

U45843

WASHER

3шт.

24

U45844

WASHER

1шт.

25

T114585

BOLT

(SUB FOR T71898)

2шт.

26

U45858

BACK-UP RING

2шт.

27

U45857

O-RING

2шт.

28

U45851

SPRING

2шт.

29

AT68931

SPOOL VALVE

1шт.
