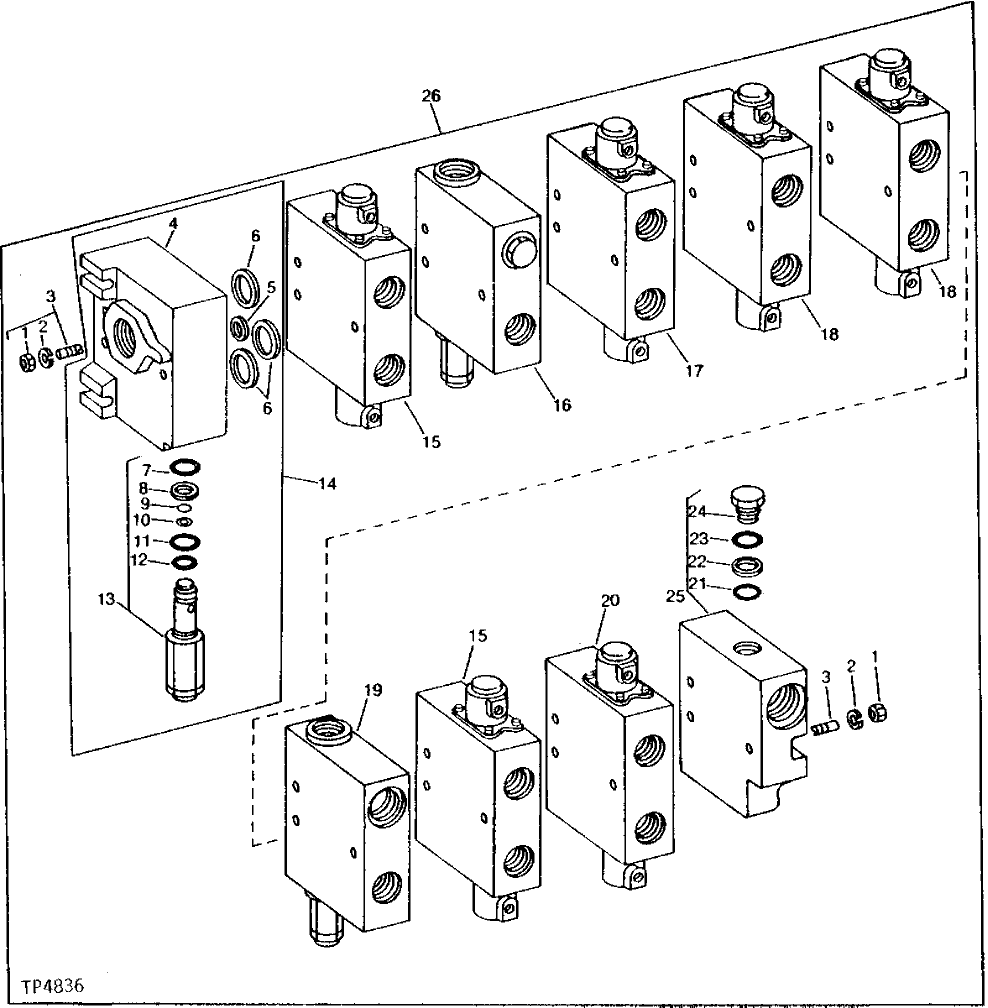

Запчасти John Deere 90B 30 - CONTROL VALVE 50 - HYDRAULIC PUMP AND CONTROL VALVE

1

NUT

(SUB AT32219)

1шт.

2

WASHER

(SUB AT32219)

1шт.

3

AT32219

STUD

3шт.

4

HOUSING

(SUB AU43590)

1шт.

5

U45844

WASHER

1шт.

6

U45843

WASHER

3шт.

7

U45845

O-RING

1шт.

8

U45847

BACK-UP RING

1шт.

9

T59052

O-RING

1шт.

10

T27963

BACK-UP RING

1шт.

11

R29936

O-RING

1шт.

12

R495R

O-RING

1шт.

13

AU43591

PRESSURE RELIEF VALVE

MAIN RELIEF

1шт.

14

AU43590

PORT PLATE

INLET

1шт.

15

AT68929

VALVE

2шт.

16

AT34525

HYD ACTUATED CONTROL VALVE

MID SECTION INLET, COMBINED FLOW (USE IF AVAILABLE)

1шт.

17

AT68931

SPOOL VALVE

1шт.

18

AT68930

SPOOL VALVE

2шт.

19

AU43593

VALVE

MID-SECTION, SPLIT FLOW

1шт.

20

AT68932

SPOOL VALVE

(USE IF AVAILABLE)

1шт.

21

T122075

O-RING

(SUB FOR U45860)

1шт.

22

U45861

BACK-UP RING

1шт.

23

RING

( H35256 NO LONGER AVAILABLE)

1шт.

24

U45859

PLUG

1шт.

25

AU43597

END PLATE

1шт.

26

AT81801

VALVE

(SUB FOR AT68928)

1шт.
