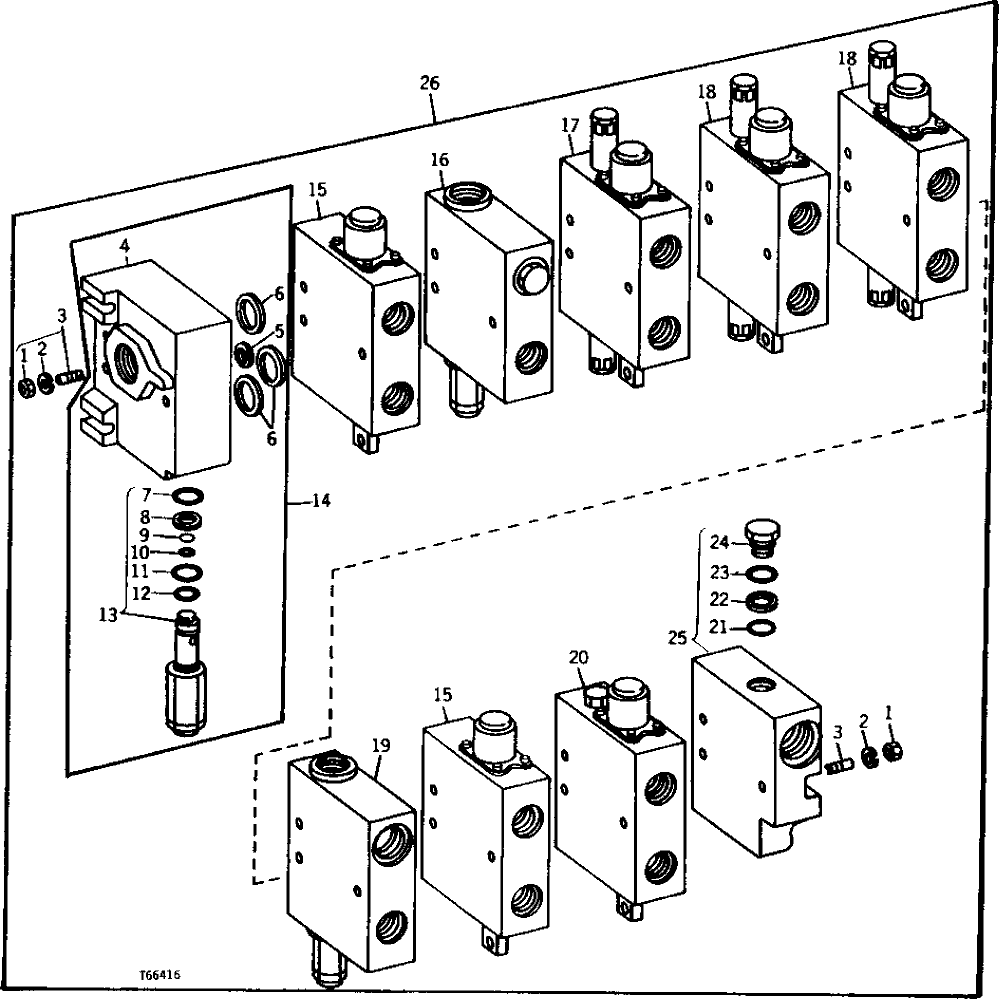

Запчасти John Deere 90B 14 - CONTROL VALVE 50 - HYDRAULIC PUMP AND CONTROL VALVE

1

NUT

(SUB AT32219)

1шт.

2

WASHER

(SUB AT32219)

1шт.

3

AT32219

STUD

3шт.

4

HOUSING

(SUB AU43590)

1шт.

5

U45844

WASHER

1шт.

6

U45843

WASHER

3шт.

7

U45845

O-RING

1шт.

8

U45847

BACK-UP RING

1шт.

9

T59052

O-RING

1шт.

10

T27963

BACK-UP RING

1шт.

11

R29936

O-RING

1шт.

12

R495R

O-RING

1шт.

13

AU43591

PRESSURE RELIEF VALVE

MAIN RELIEF

1шт.

14

AU43590

PORT PLATE

INLET

1шт.

15

AU43592

SPOOL VALVE

PROPEL (USE IF AVAILABLE)

2шт.

16

AT34525

HYD ACTUATED CONTROL VALVE

MID-SECTION INLET, COMBINED FLOW (USE IF AVAILABLE)

1шт.

17

AU43896

VALVE

BOOM

1шт.

18

AU43595

SPOOL VALVE

CROWD

2шт.

19

AU43593

VALVE

MID-SECTION, SPLIT FLOW

1шт.

20

AT41535

SPOOL VALVE

SWING (USE IF AVAILABLE)

1шт.

21

T122075

O-RING

(SUB FOR U45860)

1шт.

22

U45861

BACK-UP RING

1шт.

23

RING

( H35256 NO LONGER AVAILABLE)

1шт.

24

U45859

PLUG

1шт.

25

AU43597

END PLATE

1шт.

26

CONTROL VALVE

( AT41533 USE IF AVAILABLE)

1шт.
