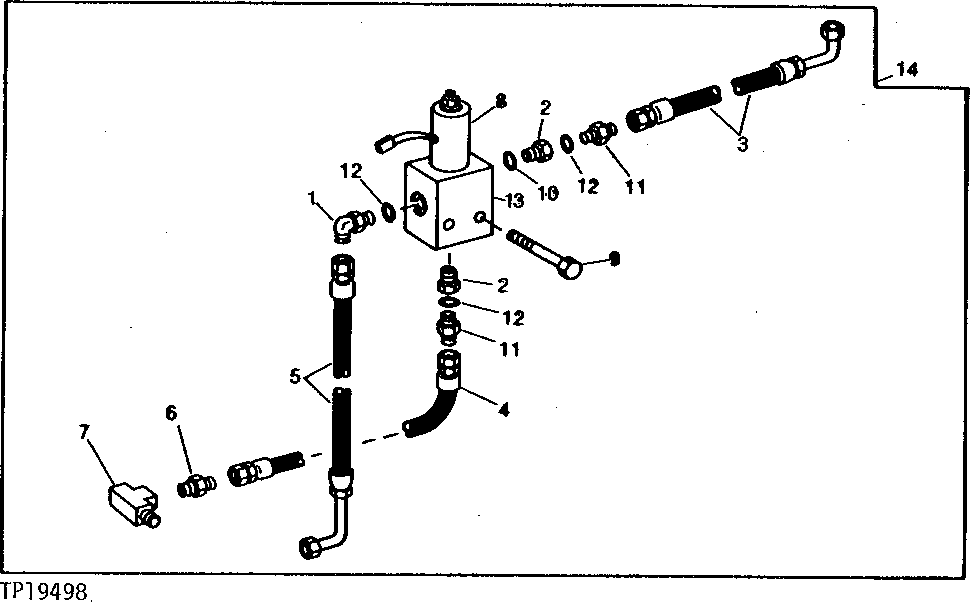

Запчасти John Deere 90B 32 - LINDE PISTON PROPEL MOTOR CONVERSION KIT 45 - TRACK AND PLANETARY DRIVE

1

AT35121

ELBOW FITTING

(LOWER SIDE PORT IN TWO SPEED HOUSING)

1шт.

2

38H1160

ADAPTER FITTING

(BRAKE PORT PROPEL MOTOR AND BRAKE PORT IN BRAKE)

4шт.

3

AT68900

HYDRAULIC HOSE - FABRICATE

(PRESSURE REDUCING VALVE TO HIGHEST SIDE PORT ON 2 - SPEED)

1шт.

4

AT66860

HYDRAULIC HOSE - FABRICATE

(TO SPEED BOTTOM DRAIN PORT TO SWING MOTOR TUBE)

1шт.

5

AT68901

HYDRAULIC HOSE - FABRICATE

(LOW SIDE PORT ON TWO SPEED TO ROTARY MANIFOLD)

1шт.

6

T38693

FITTING

(TEE TO TWO SPEED DRAIN HOSE)

1шт.

7

U10255

TEE FITTING

(ON END OF SWING MOTOR DRAIN TUBE)

1шт.

8

RE21872

SOLENOID VALVE

(SOLENOID SPOOL)

1шт.

9

19M7801

SCREW

M8 X 60, (SOLENOID TO MOUNTING STRAP)

2шт.

10

T70177

O-RING

(SIDE PORTS IN TWO SPEED HOUSING AND TWO SPEED PORT IN ROTARY MANIFOLD)

3шт.

11

R27212

FITTING

(UPPER SIDE PORT IN TWO SPEED HOUSING AND TWO SPEED PORT IN ROTARY MANIFOLD)

2шт.

12

R47150

O-RING

(BOTTOM DRAIN PORT IN TWO SPEED HOUSING)

1шт.

13

T107202

HOUSING

1шт.

14

AT105922

KIT

(LINDE PISTON PROPEL MOTOR CONVERSION)

1шт.
