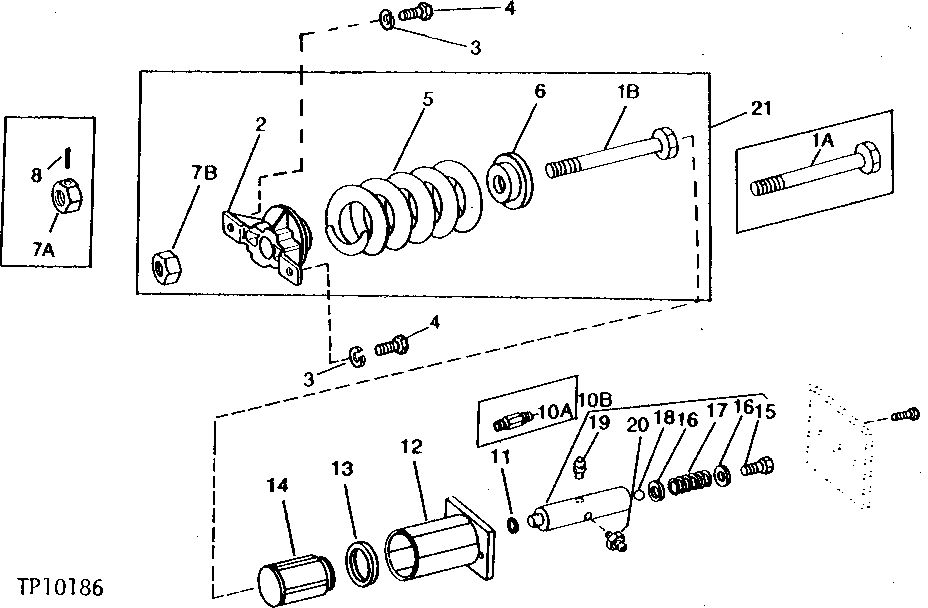

Запчасти John Deere 90B 28 - ADJUSTING CYLINDER AND IDLER SPRING ASSEMBLY 45 - TRACK AND PLANETARY DRIVE

1A

T119925

BOLT

(SUB FOR T42679)

1шт.

1B

T119925

BOLT

(SUB FOR T42679) (USE WITH AT47056)

1шт.

T123101

BOLT

(USE WITH AT125807)

1шт.

2

T42678

YOKE

1шт.

3

12H294

LOCK WASHER

5/8", (USE WITH T42683)

2шт.

12M7069

LOCK WASHER

5/8", (USE WITH 19M7488)

2шт.

4

19M7488

CAP SCREW

M16 X 2 X 40, (SUB FOR T42683)

2шт.

5

T119926

EXTENSION SPRING

(SUB FOR T44023)

1шт.

6

T42680

CAP

(USE WITH AT47056)

1шт.

T123102

CAP

(USE WITH AT125807)

1шт.

7A

T42682

NUT

1шт.

7B

T42682

NUT

(USE WITH AT47056)

1шт.

T124145

NUT

(USE WITH AT125807)

1шт.

8

T42684

SPRING PIN

(AS REQUIRED)

1шт.

9

19M7303

CAP SCREW

M12 X 45 X 8.8, (SUB FOR T42671)

2шт.

10A

AT38760

LUBRICATION FITTING

BUTTON HEAD, (SUB AT48016 AND AT48017)

1шт.

10B

AT48017

VALVE

1шт.

11

T39986

SEAL

(SUB AT48016 AND AT48017)

1шт.

AT48016

SEAL

1шт.

12

T42672

HYDRAULIC CYLINDER BARREL

1шт.

13

T42674

SEAL

(USE IF AVAILABLE) (SUB T165540)

1шт.

T165540

SEAL

1шт.

14

T42673

PISTON

1шт.

15

22H1054

SET SCREW

5/8" X 1/2"

1шт.

16

24H1286

WASHER

9/32" X 1/2" X 1/16"

2шт.

17

T18540

SPRING

1шт.

18

T23426

BALL

1шт.

19

JD7797

LUBRICATION FITTING

STRAIGHT, 1/4"

1шт.

20

N10145

FITTING PLUG

3шт.

21

SPRING ASSEMBLY

ASSEMBLY ( AT47056 NO LONGER AVAILABLE) (SUB AT125807 IF AVAILABLE)

1шт.
