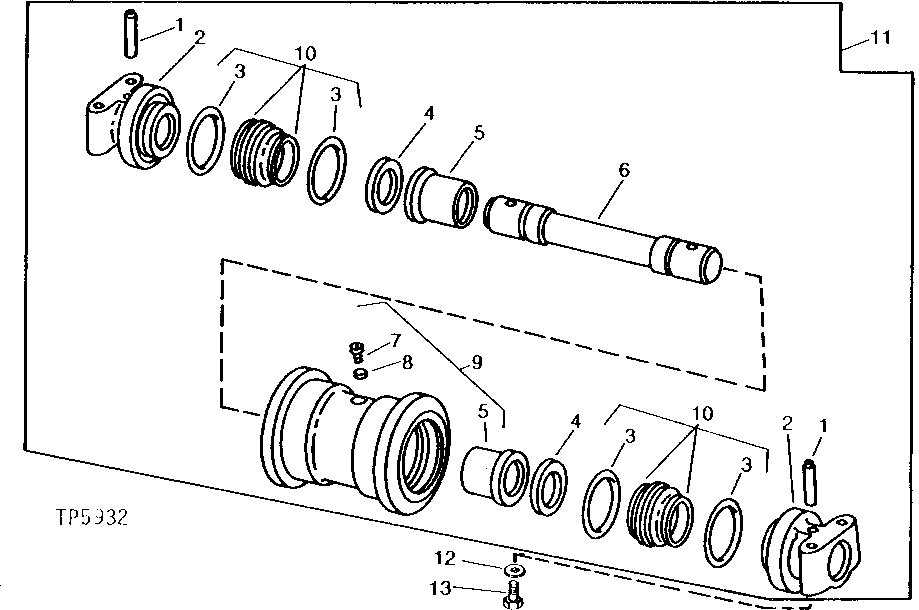

Запчасти John Deere 90B 27 - LOWER ROLLER 45 - TRACK AND PLANETARY DRIVE

1

T41924

SPRING PIN

2шт.

2

BRACKET

( T41923 NO LONGER AVAILABLE, SUB AT38206)

2шт.

3

T43879

O-RING

4шт.

4

R26282

O-RING

2шт.

5

T40239

BUSHING

2шт.

6

T42675

SHAFT

(SUB FOR T41922)

1шт.

7

T46499

PIPE PLUG

(SUB FOR T40823)

1шт.

8

T26209

RING

(USE WITH T40823)

1шт.

9

ROLLER

( AT40958 NO LONGER AVAILABLE, SUB AT38206) SINGLE FLANGE WITH PLUG, O-RING AND BUSHINGS

1шт.

ROLLER

DOUBLE FLANGE WITH PLUG AND BUSHING (NOT ILLUSTRATED) ( AT66470 NO LONGER AVAILABLE)

1шт.

10

AT40959

SEAL

2шт.

11

AT38206

ROLLER

SINGLE FLANGE (5 PER SIDE) (INSTALL IN 1, 3, 5, 7 AND 9 POSITIONS) (USE IF AVAILABLE) (SUB AT186521)

1шт.

AT186521

ROLLER

SINGLE FLANGE (5 PER SIDE) (INSTALL IN 1, 3, 5, 7 AND 9 POSITIONS) (REPLACEMENT)

1шт.

ROLLER

(SUB AT186521) DOUBLE FLANGE (4 PER SIDE) (INSTALL IN 2, 4, 6 AND 8 POSITIONS) (NOT ILLUSTRATED) ( AT63520 NO LONGER AVAILABLE FOR SERVICE)

1шт.

12

12H294

LOCK WASHER

5/8"

4шт.

13

19H2969

CAP SCREW

HS, SAE 8, 5/8" X 3-1/2"

4шт.
