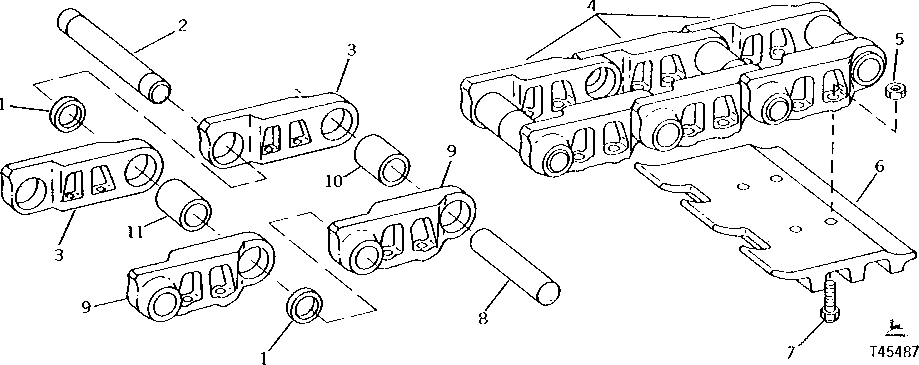

Запчасти John Deere 90B 25 - TRACK 45 - TRACK AND PLANETARY DRIVE

1

T39977

WASHER

(K)

2шт.

2

T104561

MASTER TRACK PIN

(K) (SUB FOR T43878) MASTER

2шт.

3

T75427

TRACK LINK

LEFT (47 PER TRACK) (USE IF AVAILABLE) (SUB FOR T55265) (SUB T75427AM)

1шт.

T75427AM

TRACK LINK

LEFT (47 PER TRACK)

1шт.

4

AT73372

TRACK CHAIN W/O SHOES

(47 LINK TRACK CHAIN) WITHOUT SHOES, WITHOUT MASTER PINS, (USE IF AVAILABLE) (SUB FOR AT42185) (SUB AT42185AM)

1шт.

AT42185AM

TRACK CHAIN W/O SHOES

(47 LINK TRACK CHAIN, WITHOUT SHOES, WITHOUT MASTER PINS)

1шт.

5

T45097

NUT

(188 PER TRACK) (SUB FOR T43322)

1шт.

6

T43321

TRIPLE BAR SHOE

SEMI-GROUSER, 600 MM (24") (47 PER TRACK) (SUB T57079)

1шт.

T57079

OPEN CENTER 3 BAR SHOE

SEMI-GROUSER, 600 MM (24") (47 PER TRACK)

1шт.

T43324

TRIPLE BAR SHOE

SEMI-GROUSER, 750 MM (30") (47 PER TRACK) (SUB T57080)

1шт.

T57080

TRIPLE BAR SHOE

SEMI-GROUSER, 750 MM (30") (47 PER TRACK)

1шт.

T43325

FLAT SHOE

SMOOTH BOTTOM (47 PER TRACK)

1шт.

T56832

OPEN CENTER 1 BAR SHOE

GROUSER, SINGLE BAR (47 PER TRACK)

1шт.

7

T43323

TRACK BOLT

(188 PER TRACK) (SUB FOR T45096)

1шт.

8

T55263

PIN

(K) (46 PER TRACK)

1шт.

9

T75426

TRACK LINK

RIGHT (47 PER TRACK) (USE IF AVAILABLE) (SUB FOR T55264) (SUB T75426AM)

1шт.

T75426AM

TRACK LINK

RIGHT (47 PER TRACK)

1шт.

10

T55261

BUSHING

(K) (46 PER TRACK)

1шт.

11

T55262

BUSHING

(K) MASTER

1шт.
