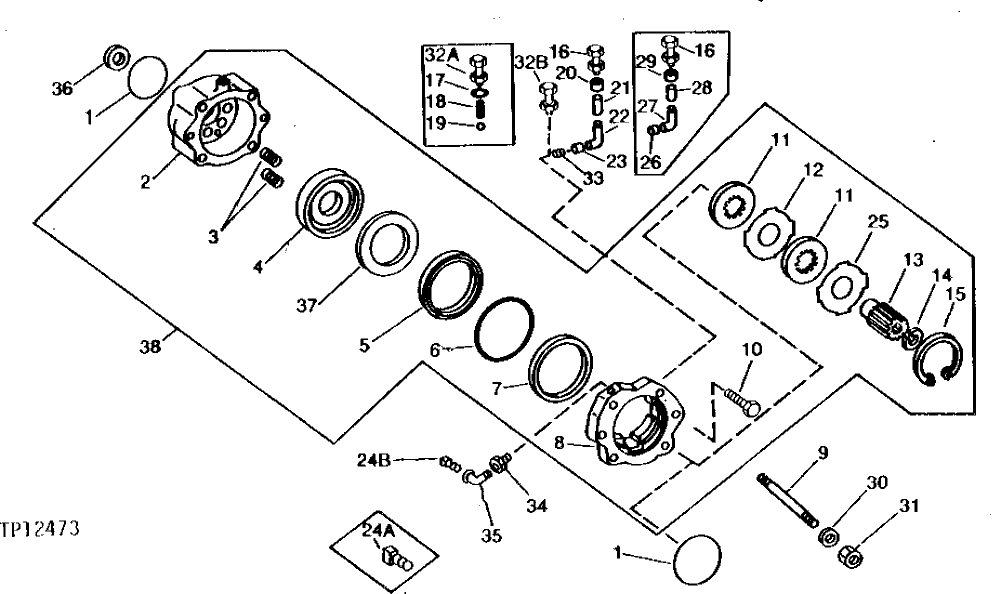

Запчасти John Deere 90B 22 - HOLDING BRAKE AND HOUSE LOCK 45 - TRACK AND PLANETARY DRIVE

1

R55453

O-RING

(SUB FOR T70178) (SUB FOR L2143CU, THIS APPLICATION)

2шт.

2

T57510

HOUSING

(SUB FOR T40973) (SUB AT60809)

1шт.

AT60809

HOUSING

(MARKED T63825)

1шт.

3

T40977

SPRING

(HOLDING BRAKE)

8шт.

T40977

SPRING

(HOUSE LOCK)

10шт.

4

T40975

PISTON

1шт.

5

AT67011

SEAL

(SUB FOR AT39719) (SUB AT112460)

1шт.

AT112460

SEAL

(SUB FOR AT79896 AND AT81800) (ALSO ORDER T80940 WITH AT81800)

1шт.

6

T70176

O-RING

(SUB FOR R35153, THIS APPLICATION)

1шт.

7

U44590

BACK-UP RING

1шт.

8

T75463

FLANGE

(SUB FOR T40974 AND T57511) (ALSO ORDER (2) 19H2922)

1шт.

T77035

FLANGE

3шт.

9

A3118R

STUD

(HOLDING BRAKE)

4шт.

T67715

STUD

(HOLDING BRAKE)

4шт.

F138R

STUD

(HOUSE LOCK) (SUB T67716, THIS APPLICATION)

4шт.

T67716

STUD

(HOUSE LOCK)

4шт.

10

19H3239

CAP SCREW

3/8" X 1-1/4"

ARшт.

19H2922

SCREW

3/8" X 1-1/4"

ARшт.

11

T114856

BRAKE DISK

(SUB FOR T40979 AND T46153)

7шт.

12

T59495

BRAKE DISK

(SUB FOR T40978)

7шт.

13

T40976

SHAFT

1шт.

14

T14445

SNAP RING

1шт.

15

T40980

SNAP RING

1шт.

16

U14273

BREATHER

(HOUSE LOCK)

1шт.

17

T24199

WASHER

(PROPEL BRAKE) (USE WITH U14273 PROPEL BRAKE)

2шт.

18

T42915

SPRING

(PROPEL BRAKE) (USE WITH U14273 PROPEL BRAKE)

2шт.

19

T13624

BALL

(USE WITH U14273) (PROPEL BRAKE) (USE WITH U14273 PROPEL BRAKE)

2шт.

20

15H514

PIPE BUSHING

OUTSIDE, HEX., 1/2" X 1/8" (HOUSE LOCK)

2шт.

T41645

FITTING

1" X 1/8"

3шт.

21

T59036

COUPLING

(HOUSE LOCK)

1шт.

29H761

THREADED NIPPLE

1" X 5"

3шт.

22

15H602

ELBOW FITTING

(SUB FOR 15H200) 90°, 1/2"

1шт.

15H415

ELBOW FITTING

3/8" X 1"

3шт.

23

T28053

THREADED NIPPLE

(HOUSE LOCK)

1шт.

15H642

PIPE BUSHING

1/4" X 3/8"

3шт.

24

15H638

PIPE PLUG

SQ. HD., 1/8"

3шт.

25

T59496

BRAKE DISK

(SUB FOR T41896)

1шт.

26

29H483

THREADED NIPPLE

1/8" X 3/4"

1шт.

27

15H405

ELBOW FITTING

90° REDUCER, 1/4" X 1/8" (HOUSE LOCK)

1шт.

28

29H84

THREADED NIPPLE

1/4" X 1-1/2"

1шт.

29

15H295

COUPLING

PIPE, REDUCER, 1/4" X 1/8" (HOUSE LOCK)

1шт.

30

24H1341

WASHER

17/32" X 15/16" X 0.060"

4шт.

N31767

WASHER

4шт.

31

14H1040

NUT

1/2"

4шт.

32A

U14273

BREATHER

(PROPEL BRAKE)

2шт.

32B

E14814

PRESSURE RELIEF FITTING

(SUB FOR AT70481) (PROPEL BRAKE)

2шт.

33

29H688

THREADED NIPPLE

1/4" X 1-3/4"

3шт.

34

15H639

PIPE BUSHING

1/8", (SUB FOR 15H509)

1шт.

35

29H197

THREADED NIPPLE

1/2"

1шт.

36

AT40603

SEAL

1шт.

37

T107595

BACK-UP RING

(USE WITH AT81863) (SUB FOR T80940)

1шт.

38

AT81863

BRAKE

(HOLDING BRAKE) (SUB FOR AT75564)

1шт.

BRAKE

(HOUSE LOCK) ( AT81864 USE IF AVAILABLE)

1шт.
