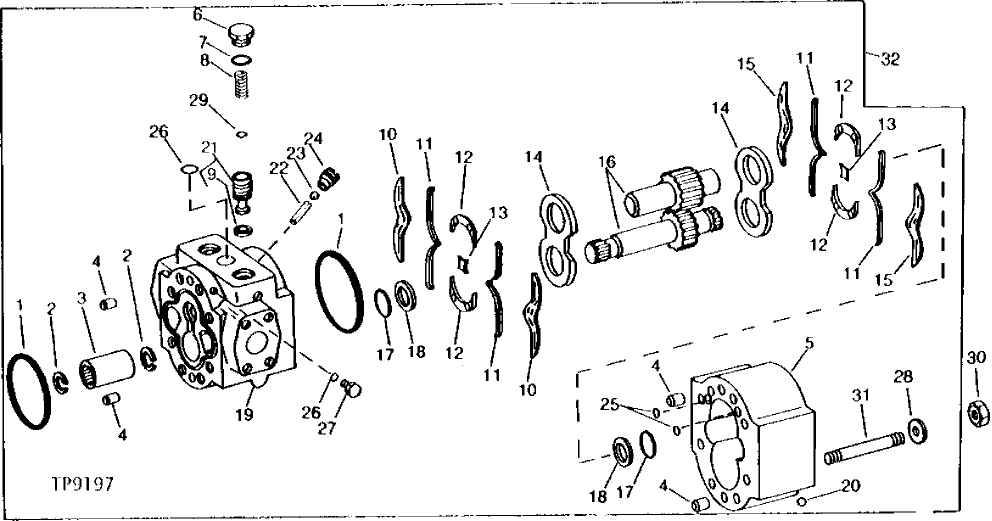

Запчасти John Deere 90B 13 - TRACK DRIVE MOTOR 45 - TRACK AND PLANETARY DRIVE

1

T42742

O-RING

2шт.

2

T23694

SNAP RING

(SUB FOR U46421)

2шт.

3

T42740

SPLINED COUPLING

SPLINE

1шт.

4

U44854

DOWEL PIN

4шт.

5

HOUSING

(SUB AT73355)

1шт.

6

T77006

FITTING

2шт.

7

R47156

O-RING

2шт.

8

T77005

SPRING

2шт.

9

T74343

WASHER

2шт.

10

T74341

PLATE

2шт.

11

T46532

ISOLATOR

4шт.

12

T61324

SEPARATOR

END, (SUB FOR T38838, THIS APPLICATION)

4шт.

13

T61325

SEPARATOR

CENTER, (SUB FOR T38840, THIS APPLICATION)

2шт.

14

T74344

PLATE

2шт.

15

T74342

PLATE

2шт.

16

GEAR

(SUB AT73355)

1шт.

17

T61327

O-RING

(SUB FOR U15415, THIS APPLICATION)

4шт.

18

T61326

BACK-UP RING

(SUB FOR T38849, THIS APPLICATION)

4шт.

19

PLATE

(SUB AT47563)

1шт.

20

T71988

BALL

(SUB AT73355) 1/4"

1шт.

21

AT75527

PISTON

2шт.

22

34H225

SPRING PIN

3/32" X 3/8"

2шт.

23

400R

BALL

1/4"

2шт.

24

T74347

FITTING

2шт.

25

H63283

O-RING

2шт.

26

R26448

O-RING

2шт.

27

R27218

FITTING PLUG

1шт.

28

U44865

WASHER

8шт.

29

R61462

RING

2шт.

30

U44860

NUT

8шт.

31

T42746

STUD

8шт.

32

AT75528

KIT

1шт.
