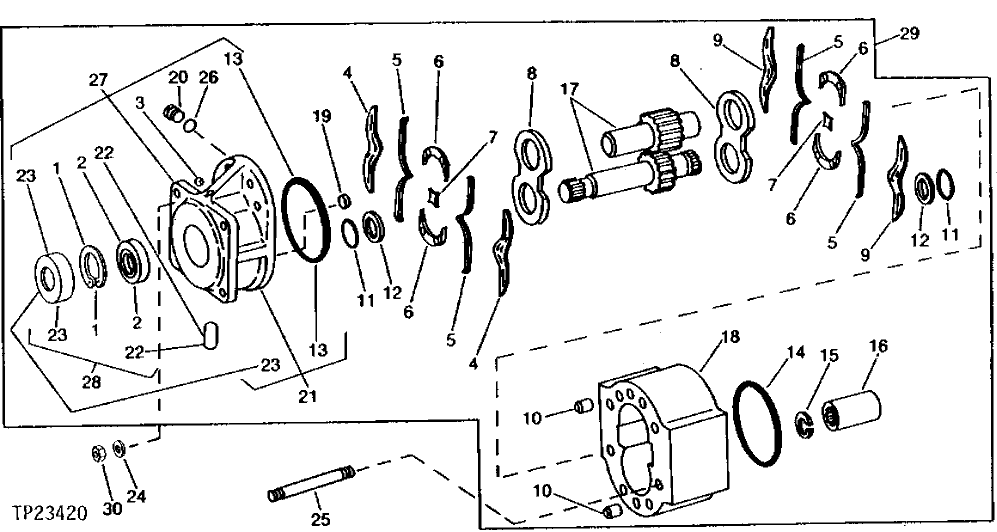

Запчасти John Deere 90B 10 - TRACK DRIVE MOTOR 45 - TRACK AND PLANETARY DRIVE

1

N51168

SNAP RING

FRONT SECTION

1шт.

2

T74339

SEAL

(USED IN AT77816 FLANGE KIT)

1шт.

3

400R

BALL

3шт.

4

T74341

PLATE

2шт.

5

T46532

ISOLATOR

4шт.

6

T61324

SEPARATOR

END

4шт.

7

T61325

SEPARATOR

CENTER

2шт.

8

T74344

PLATE

2шт.

9

T74342

PLATE

2шт.

10

U44854

DOWEL PIN

4шт.

11

T61327

O-RING

4шт.

12

T61326

BACK-UP RING

BACKUP, (SUB FOR T38849, THIS APPLICATION)

4шт.

13

T61267

O-RING

(USE WHEN O-RING GROOVE IS LESS THAN 1.52 MM (.06") DEEP)

1шт.

T60657

O-RING

(USE WHEN O-RING GROOVE IS MORE THAN 1.52 MM (.06") DEEP)

1шт.

14

T42742

O-RING

1шт.

15

T23694

SNAP RING

(SUB FOR U46421)

1шт.

16

T42740

SPLINED COUPLING

SPLINE

1шт.

17

GEAR

(SUB AT77815) (SUB FOR AT73354)

1шт.

GEAR

(SUB AT77815)

1шт.

18

HOUSING

(SUB AT77815) (SUB FOR AT73354)

1шт.

HOUSING

(SUB AT77815)

1шт.

19

T48992

PIN

2шт.

20

T74350

ORIFICE

(SUB T78422)

2шт.

T78422

ORIFICE

2шт.

21

AT41670

SEAL KIT

1шт.

22

T74352

PRESSURE RELIEF VALVE

1шт.

23

T42737

SEAL

(USED IN AT77816 FLANGE KIT)

1шт.

24

U44865

WASHER

8шт.

25

T42745

STUD

8шт.

26

D2361R

BALL

2шт.

27

AT72021

FLANGE

(SUB AT77816)

1шт.

AT77816

FLANGE

1шт.

28

AT72022

SEAL KIT

(ALSO INCLUDES T61267 AND T60657)

1шт.

29

AT73354

KIT

FRONT SECTION, (SUB AT77815)

1шт.

AT77815

KIT

FRONT SECTION

1шт.

30

U44860

NUT

8шт.
