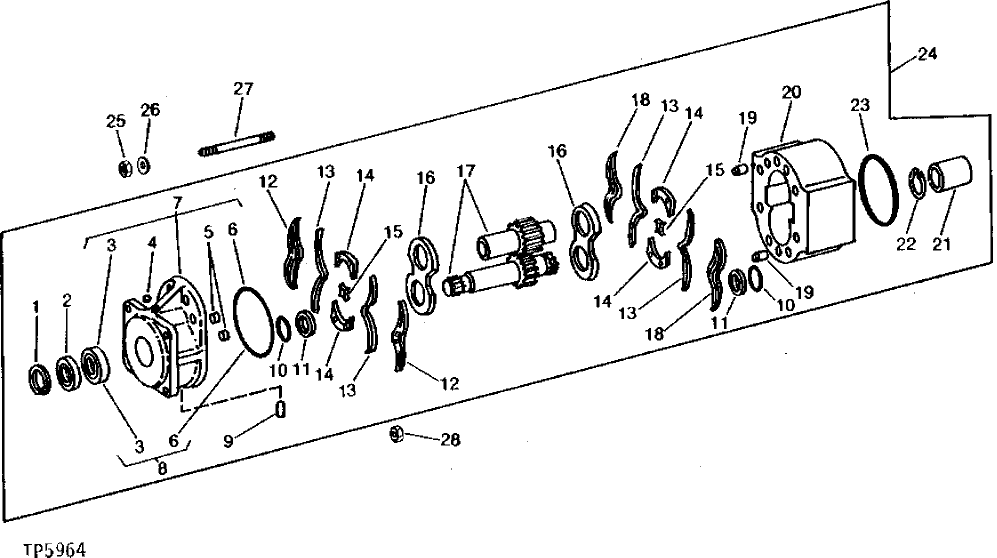

Запчасти John Deere 90B 6 - TRACK DRIVE MOTOR 45 - TRACK AND PLANETARY DRIVE

1

N51168

SNAP RING

1шт.

2

T74339

SEAL

(SUB FOR U44858)

1шт.

T74339

SEAL

(A)

1шт.

3

T42737

SEAL

(A)

1шт.

4

400R

BALL

6.35 MM (1/4") (SUB FOR U44850)

3шт.

5

T48992

PIN

2шт.

6

T61267

O-RING

(A) (USE WHEN O-RING GROOVE IS LESS THAN 1.52 MM (.06") DEEP

1шт.

T60657

O-RING

(A) (SUB FOR T41418, THIS APPLICATION) WHEN O-RING GROOVE IS MORE THAN 1.52 MM (.06") DEEP

1шт.

7

AT75532

KIT

(SUB FOR AT41667)

1шт.

8

AT41670

SEAL KIT

1шт.

9

T67479

CAP

1шт.

10

T61327

O-RING

(A) (SUB FOR U15415 AND T38850, THIS APPLICATION) (ALSO ORDER T61326)

4шт.

11

T61326

BACK-UP RING

(A) (SUB FOR T38849, THIS APPLICATION) (ALSO ORDER T61327)

4шт.

12

T74341

PLATE

(A) (SUB FOR T46533)

2шт.

13

T46532

ISOLATOR

(A) (SUB FOR T38845, THIS APPLICATION)

4шт.

14

T61324

SEPARATOR

(A) (SUB FOR T38838, THIS APPLICATION)

4шт.

15

T61325

SEPARATOR

(A) CENTER, (SUB FOR T38840, THIS APPLICATION)

2шт.

16

T38839

PLATE

(SUB FOR T46534)

2шт.

17

AT41668

KIT

GEARS, MATCHED SET

1шт.

18

T74342

PLATE

(A) (SUB FOR T46535)

2шт.

19

U44854

DOWEL PIN

4шт.

20

T42734

HOUSING

(SUB AT77815)

1шт.

21

T42740

SPLINED COUPLING

1шт.

22

T23694

SNAP RING

1шт.

23

T42742

O-RING

(A)

1шт.

24

AT41665

KIT

FRONT SECTION

1шт.

AT77815

KIT

FRONT SECTION, (SUB FOR AT69136)

1шт.

25

U44860

NUT

8шт.

26

U44865

WASHER

8шт.

27

T42745

STUD

8шт.

28

14H826

NUT

1/2"

4шт.

AT105429

KIT

(SUB FOR AT50582 FRONT SECTION AND AT50583 REAR SECTION) (ALSO INCLUDES (2) H63283 O-RING)

1шт.
