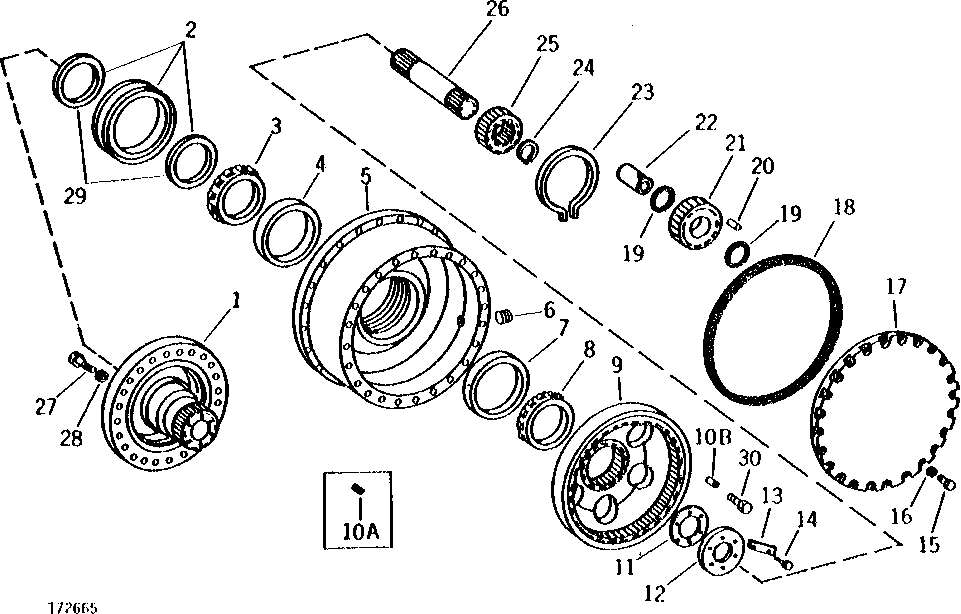

Запчасти John Deere 90B 4 - PLANETARY DRIVE 45 - TRACK AND PLANETARY DRIVE

1

T39430

HOUSING

AXLE

1шт.

2

AT112491

SEAL

(SUB FOR AT53580 AND AT38194)

1шт.

3

JD9050

BEARING CONE

1шт.

4

JD9115

BEARING CUP

1шт.

5

T39428

HUB

(SUB T71025, T71024 AND (23) 24M7241)

1шт.

T71025

HUB

1шт.

6

U17027

FITTING

1шт.

7

JD9129

BEARING CUP

1шт.

8

JD9072

BEARING CONE

1шт.

9

AT38193

PLANET PINION CARRIER

INCLUDES R76845 RING GEAR

1шт.

R76845

PINION

PLANET PINION CARRIER RING GEAR

1шт.

10A

R34582

SET SCREW

3/8" X 1"

6шт.

10B

R65499

DOWEL PIN

6шт.

11

SHIM

(A) .508 MM (.020") ( T39435 NOT AVAILABLE)

ARшт.

SHIM

(A) .18 MM (.007") ( T39436 NOT AVAILABLE)

ARшт.

SHIM

(A) .13 MM (.005") ( T39437 NOT AVAILABLE)

ARшт.

12

T39434

RETAINER

1шт.

13

T19583

WASHER

(SUB FOR T39438, THIS APPLICATION)

6шт.

14

19H2964

CAP SCREW

7/16" X 1-1/8", (USE WITH T19583)

6шт.

15

19H3579

CAP SCREW

1/2" X 1-3/8"

24шт.

16

24H1338

WASHER

33/64" X 7/8" X 0.048"

24шт.

17

T39426

PLANET PINION CARRIER

1шт.

18

T39429

O-RING

1шт.

19

R33022

THRUST WASHER

6шт.

20

R33028

NEEDLE ROLLER

99шт.

21

R33004

PINION

3шт.

22

R63112

PINION SHAFT

(SUB FOR R33021)

3шт.

23

R33029

SNAP RING

1шт.

24

T39433

SNAP RING

2шт.

25

T39432

SUN GEAR

SUN

1шт.

26

T39431

SHAFT

SUN

1шт.

T74979

SHAFT

SUN

1шт.

27

19H2969

CAP SCREW

HS, SAE 8, 5/8" X 3-1/2"

24шт.

28

12H294

LOCK WASHER

5/8"

ARшт.

29

AT43221

KIT

CONTAINS TWO O-RINGS

1шт.

30

15H275

PIPE PLUG

1/4"

6шт.
