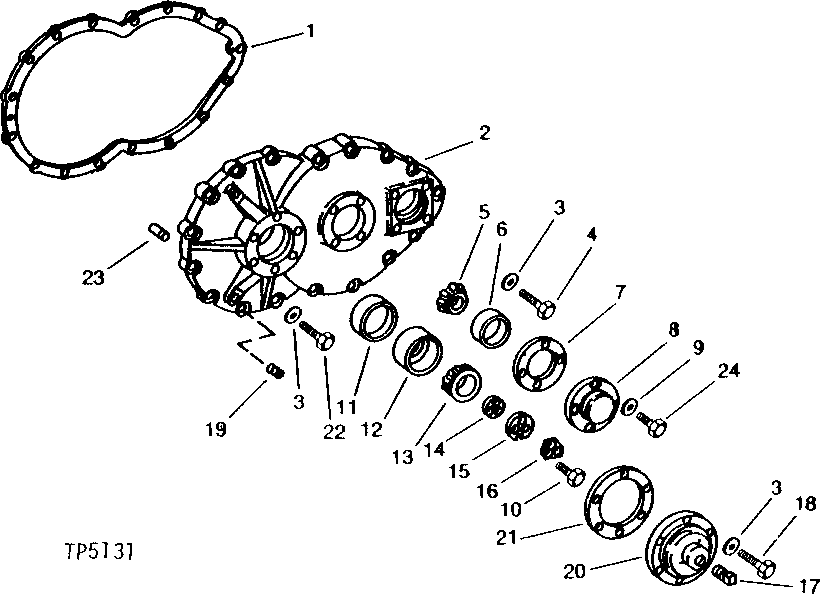

Запчасти John Deere 90B 2 - TRACK DRIVE GEAR CASE COVER 45 - TRACK AND PLANETARY DRIVE
№
Артикул
Название
Примечание
Количество
1
T39403
GASKET
1шт.
2
T58004
COVER
(SUB FOR T39402) (ALSO ORDER (2) 15H562) (SUB T72157)
1шт.
T72157
COVER
1шт.
3
24H1227
WASHER
17/32" X 13/16" X 0.060"
23шт.
4
19H1781
CAP SCREW
1/2" X 3-1/2", (USE WITH T58004 AND T67718)
9шт.
19H2965
CAP SCREW
1/2" X 3-1/2", (USE WITH T72157)
7шт.
19H3550
CAP SCREW
HS, SAE 8, 1/2" X 4" (USE WITH T72157)
2шт.
5
JD9027
BEARING CONE
2шт.
6
JD8223
BEARING CUP
2шт.
7
SHIM
(A) .190 MM (.0075") ( T39409 NO LONGER AVAILABLE)
ARшт.
SHIM
(A) .127 MM (.005") ( T39410 NO LONGER AVAILABLE)
ARшт.
SHIM
(A) .5080 MM (.020") ( T39411 NO LONGER AVAILABLE)
ARшт.
8
T39408
BEARING HOUSING W/O BEARING
1шт.
9
24H1301
WASHER
13/32" X 9/16" X 0.065"
4шт.
10
19H3617
CAP SCREW
HS, SAE 8, 7/16" X 1-1/8"
3шт.
11
T41644
BUSHING
1шт.
12
JD8255
BEARING CUP
1шт.
13
JD8941
BEARING CONE
1шт.
14
SHIM
(A) .5080 MM (.020") ( T39416 NO LONGER AVAILABLE)
ARшт.
SHIM
(A) .190 MM (.0075") ( T39417 NO LONGER AVAILABLE)
ARшт.
SHIM
(A) .127 MM (.005") ( T39418 NO LONGER AVAILABLE)
ARшт.
15
T39415
WASHER
1шт.
16
PLATE
( T39425 NO LONGER AVAILABLE) (SUB (3) T19583)
1шт.
T19583
WASHER
(NOT ILLUSTRATED)
3шт.
17
15H690
PIPE PLUG
SQ. CTSK., 3/4"
1шт.
18
19H2898
CAP SCREW
HS, SAE 8, 1/2" X 1-1/4"
6шт.
19
T42914
FITTING
SQ. CTSK., 1"
2шт.
15H562
PIPE PLUG
SQ. CTSK., 1", (USE WITH T58004 AND T67718)
2шт.
15H562
PIPE PLUG
SQ. CTSK., 1", (USE WITH T72157)
2шт.
20
T39420
BEARING HOUSING W/O BEARING
1шт.
21
T39421
GASKET
1шт.
22
19H2735
CAP SCREW
1/2" X 2"
8шт.
23
R26198
DOWEL PIN
2шт.
24
19H3483
CAP SCREW
3/8" X 1-1/8"
4шт.
AT38195
DRIVE
CONTAINS ALL PARTS ON THIS PAGE AND PAGE 45-1 EXCEPT KEYS 1, 17 AND 18, (SUB AT69281)
1шт.
AT69281
DRIVE
CONTAINS ALL PARTS ON THIS PAGE AND PAGE 45-1 EXCEPT KEYS 1, 17 AND 18, (SUB FOR AT64573)
1шт.
DRIVE
( AT72548 NO LONGER AVAILABLE, ORDER COMPONENTS) CONTAINS ALL PARTS ON THIS PAGE AND PAGE 45-1 EXCEPT KEYS 1, 17 AND 18
1шт.
Выбрано товаров: 37
