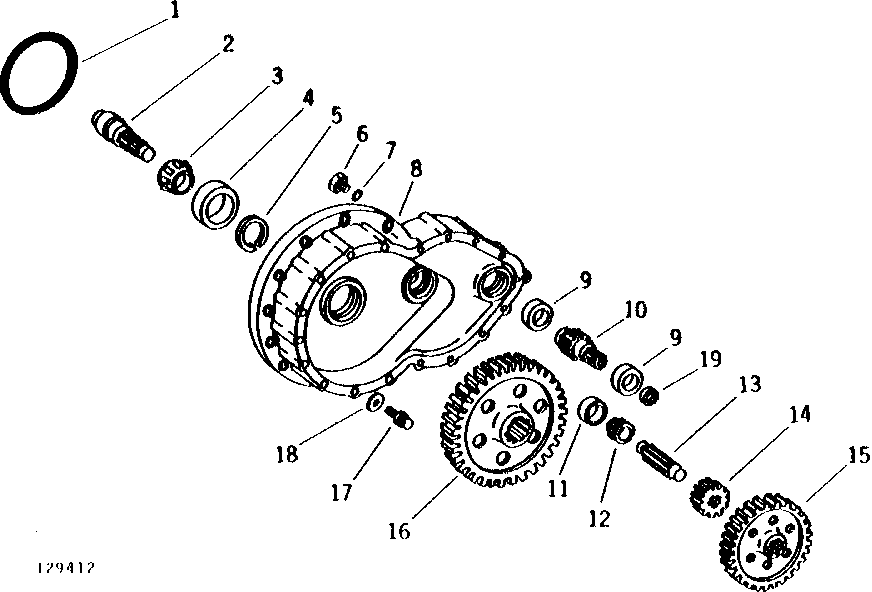

Запчасти John Deere 90B 1 - TRACK DRIVE GEAR CASE AND GEARS 45 - TRACK AND PLANETARY DRIVE

1

U42029

O-RING

1шт.

2

T39439

SHAFT

OUTPUT

1шт.

T74978

SHAFT

OUTPUT

1шт.

3

JD9075

BEARING CONE

1шт.

4

JD9132

BEARING CUP

1шт.

5

F3669R

SNAP RING

1шт.

6

R27094

DRAIN PLUG

1шт.

7

R26286

O-RING

1шт.

8

T39401

GEAR CASE

(USE IF AVAILABLE)

1шт.

9

JD7682

BALL BEARING

2шт.

10

T47029

GEAR

INPUT, (SUB FOR T39404)

1шт.

11

JD8223

BEARING CUP

1шт.

12

JD9027

BEARING CONE

1шт.

13

T39405

SHAFT

INTERMEDIATE

1шт.

14

T24862

PINION

FINAL DRIVE

1шт.

15

T40533

GEAR

INTERMEDIATE

1шт.

16

T29461

GEAR

FINAL DRIVE

1шт.

17

T40256

SCREW

9шт.

18

C12180

WASHER

(SUB FOR M930T, THIS APPLICATION)

9шт.

19

AT40603

SEAL

1шт.

AT38195

DRIVE

CONTAINS ALL PARTS ON THIS PAGE EXCEPT KEYS 1, 17 AND 18 AND ALL PARTS ON PAGE 45-2, (SUB AT69281)

1шт.

AT69281

DRIVE

CONTAINS ALL PARTS ON THIS PAGE EXCEPT KEYS 1, 17 AND 18 AND ALL PARTS ON PAGE 45-2, (SUB FOR AT64573)

1шт.

DRIVE

( AT72548 NO LONGER AVAILABLE, ORDER COMPONENTS) CONTAINS ALL PARTS ON THIS PAGE EXCEPT KEYS 1, 17 AND 18 AND ALL PARTS ON PAGE 45-2

1шт.
