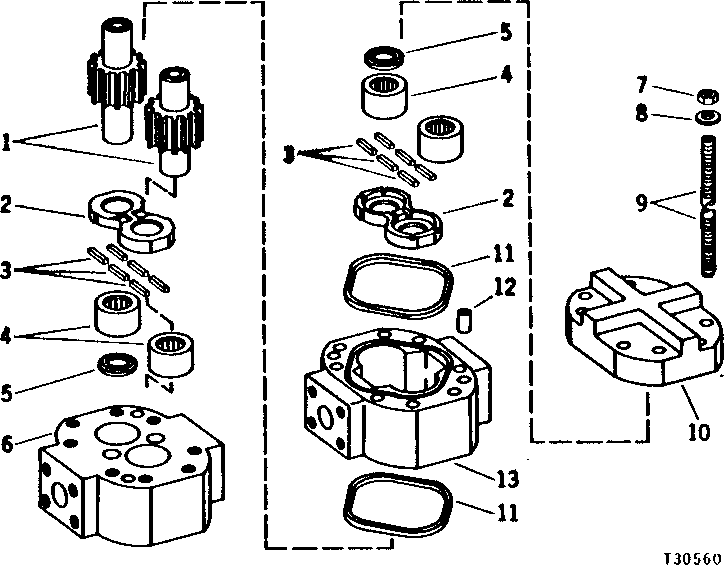

Запчасти John Deere 90B 12 - SWING MOTOR 40 - MAIN FRAME AND UNDERCARRIAGE

1

AT41493

GEAR

1шт.

2

T42532

PLATE

2шт.

3

T42531

ISOLATOR

(A)

4шт.

4

T42535

CYLINDRICAL ROLLER BEARING

4шт.

5

T42534

WEAR RING

(A)

2шт.

6

HOUSING

DOWELED BEARING ( T42536 NO LONGER AVAILABLE)

1шт.

7

14H1039

NUT

5/8"

8шт.

8

R70268

WASHER

(SUB FOR T42528 OR (8) R42363)

8шт.

9

T42527

ROD

8шт.

10

T42537

END PLATE

1шт.

11

T42530

WASHER

(A)

2шт.

12

T42525

DOWEL PIN

4шт.

13

T42533

HOUSING

GEAR

1шт.

AT41492

SEAL KIT

(A) MOTOR INCLUDES ALL PARTS IDENTIFIED BY (A) ON THIS PAGE AND PAGE 40-9

1шт.

AT39777

HYDRAULIC MOTOR

1шт.
