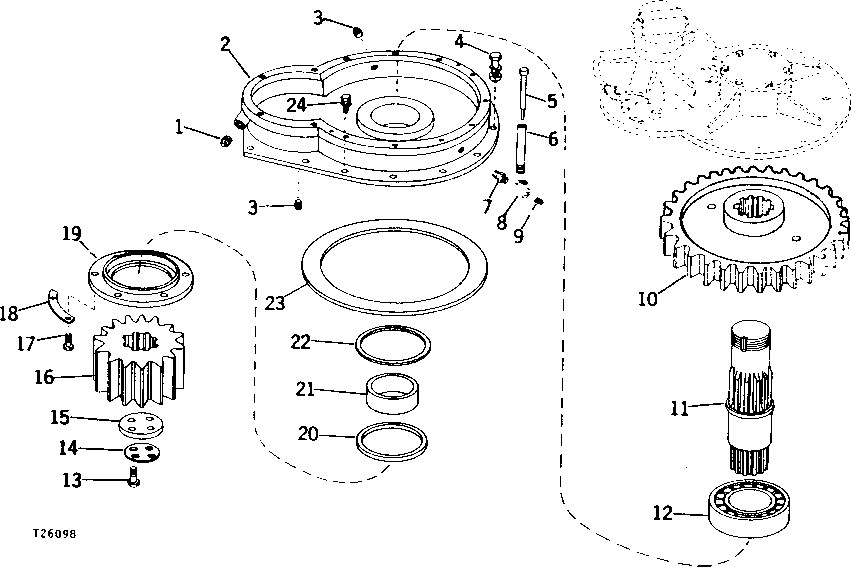

Запчасти John Deere 90 4 - SWING MACHINERY 40 - MAIN FRAME AND UNDERCARRIAGE

1

15H562

PIPE PLUG

SQ. CTSK., 1"

1шт.

2

CRANKCASE

( U46362 NO LONGER AVAILABLE)

1шт.

3

15H585

PIPE PLUG

SQ. HD., 3/4"

2шт.

4

U45635

BOLT

5шт.

12H245

LOCK WASHER

7/8", (SUB FOR 12H352)

5шт.

14H932

NUT

7/8"

5шт.

5

GAUGE

( U46215 NO LONGER AVAILABLE)

1шт.

6

U46214

THREADED NIPPLE

1шт.

7

956218

THREADED NIPPLE

(SUB FOR U46212)

1шт.

8

TEE FITTING

( U46213 NO LONGER AVAILABLE)

1шт.

9

15H623

PIPE PLUG

SQ. HD., 3/8"

1шт.

10

GEAR

( U46131 USE IF AVAILABLE)

1шт.

11

U46130

SHAFT

1шт.

12

U46138

SPHERICAL ROLLER BEARING

1шт.

13

19H3617

CAP SCREW

HS, SAE 8, 7/16" X 1-1/8"

4шт.

14

WASHER

DOUBLE ( U46146 NO LONGER AVAILABLE)

1шт.

15

U46145

PLATE

1шт.

16

U46210

GEAR

1шт.

17

19H2632

CAP SCREW

1/2" X 1-1/8"

6шт.

18

U46142

WASHER

3шт.

19

U46141

COVER

1шт.

20

984194

SEAL

(SUB FOR U46140)

1шт.

21

BUSHING

( U46139 NO LONGER AVAILABLE)

1шт.

22

489296

SHIM

(SUB FOR U46152)

3шт.

23

U46035

ISOLATOR

1шт.

24

19H2717

CAP SCREW

3/4" X 1-3/4"

6шт.

24H1395

WASHER

25/32" X 1-7/16" X 0.060"

6шт.
